Exhaust Manifold: Service and Repair

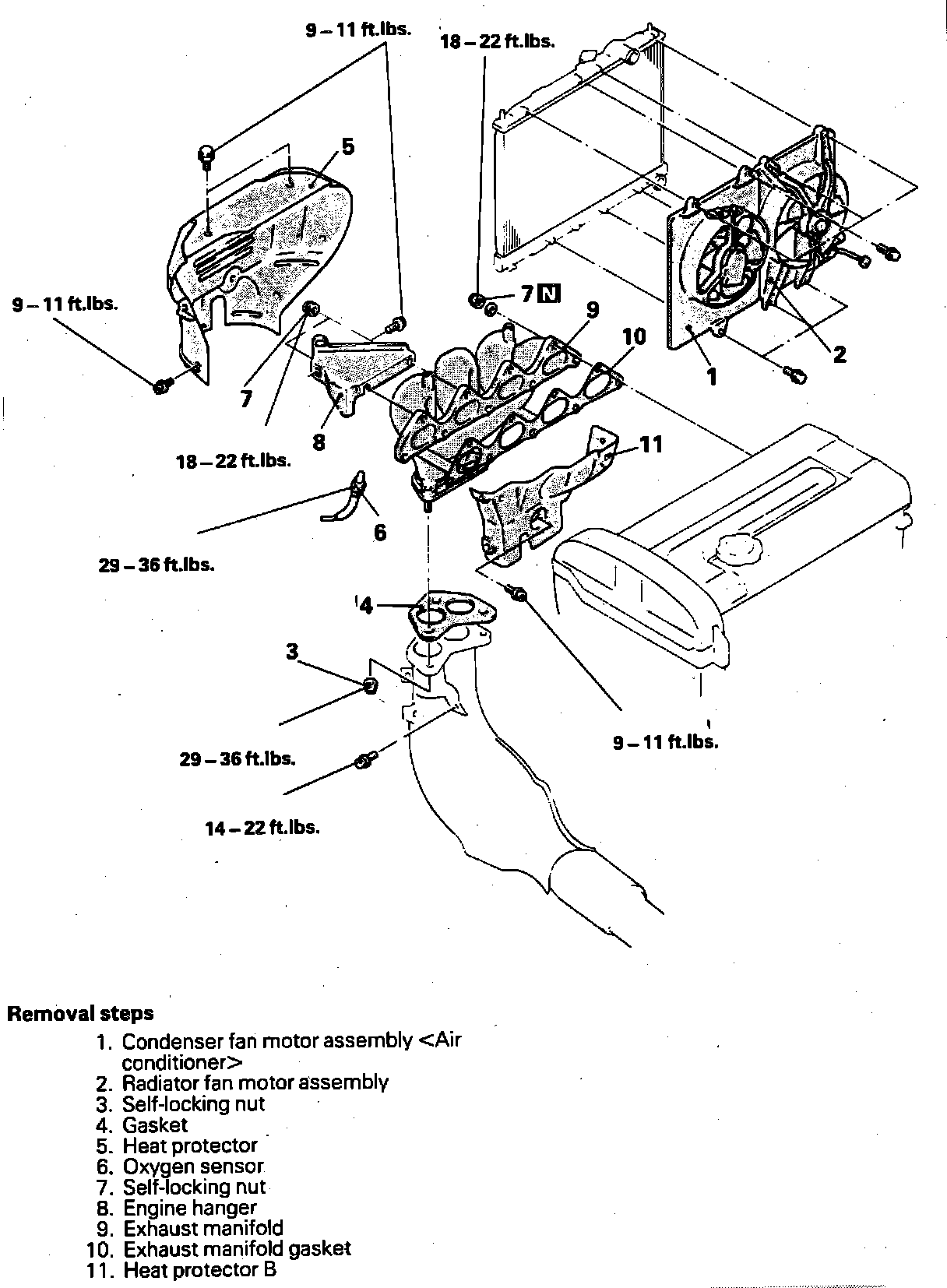

Fig. 3 Replacing Exhaust Manifold. 1.5L/4-89.6:

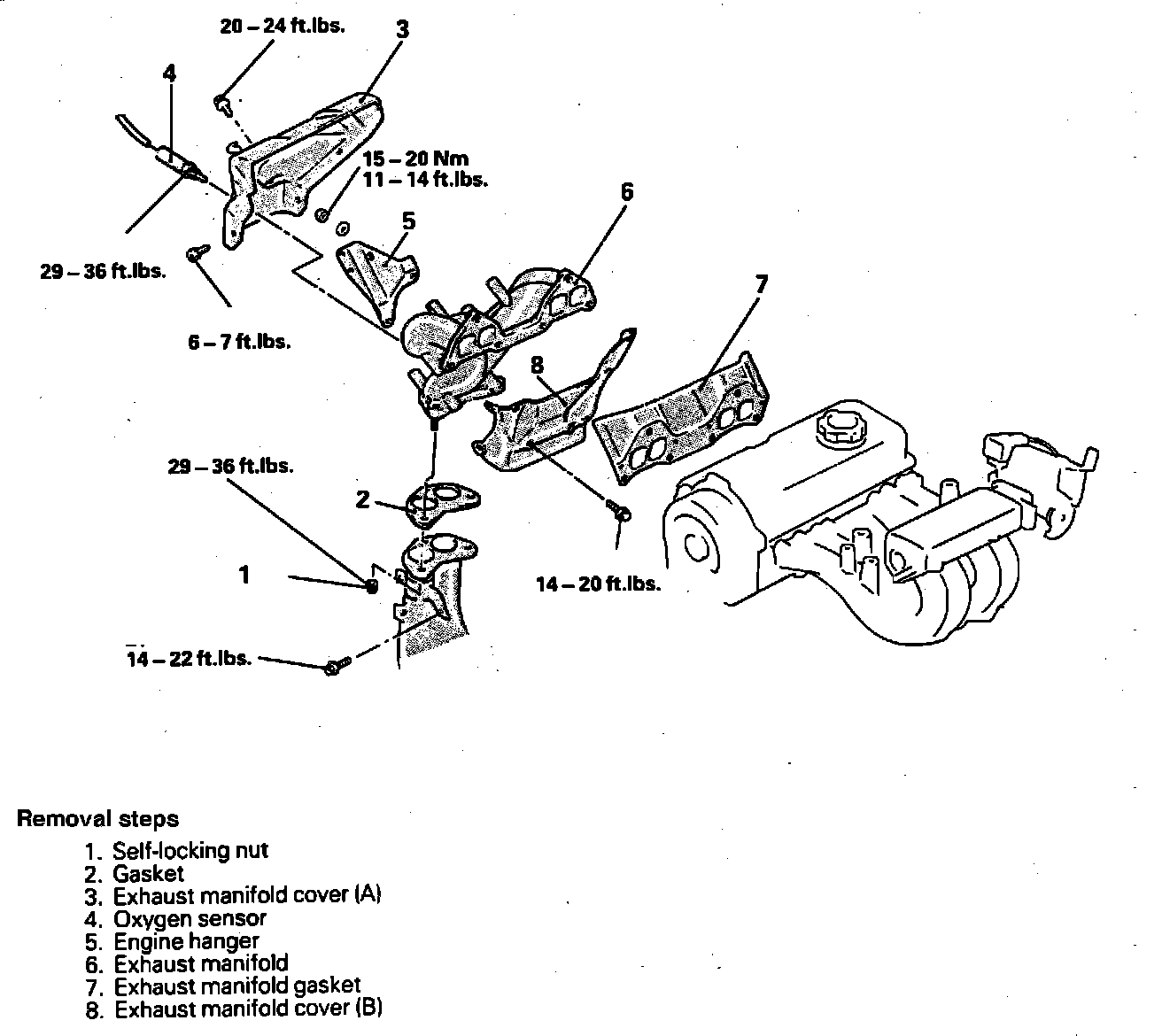

Fig. 4 Replacing Exhaust Manifold. 1.6L/4-97.4:
When replacing exhaust manifold, remove and install manifold in numbered sequence as shown in Figs. 3 and 4.
When replacing exhaust manifold, remove and install manifold in numbered sequence as shown in Figs. 3 and 4.
