Home >> Mitsubishi >> 1987 >> Tredia L4-2.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> M/T Torque Data

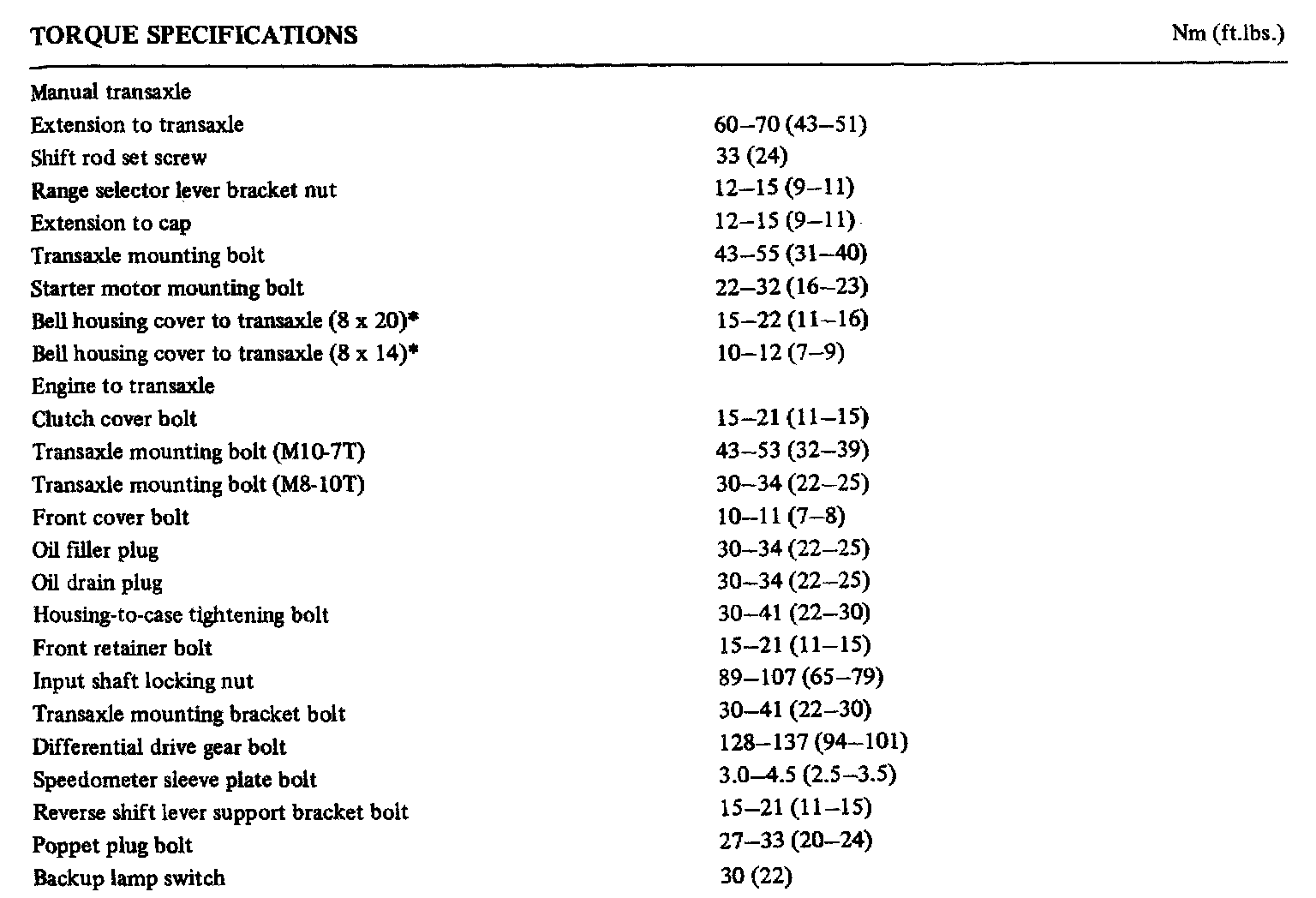

M/T Torque Data

KM163 5-spd M/T / KM166 4-spd M/T, Clutch Torque:





KM163 5-spd M/T / KM166 4-spd M/T, Transaxle Assembly:
