Disassembly and Assembly

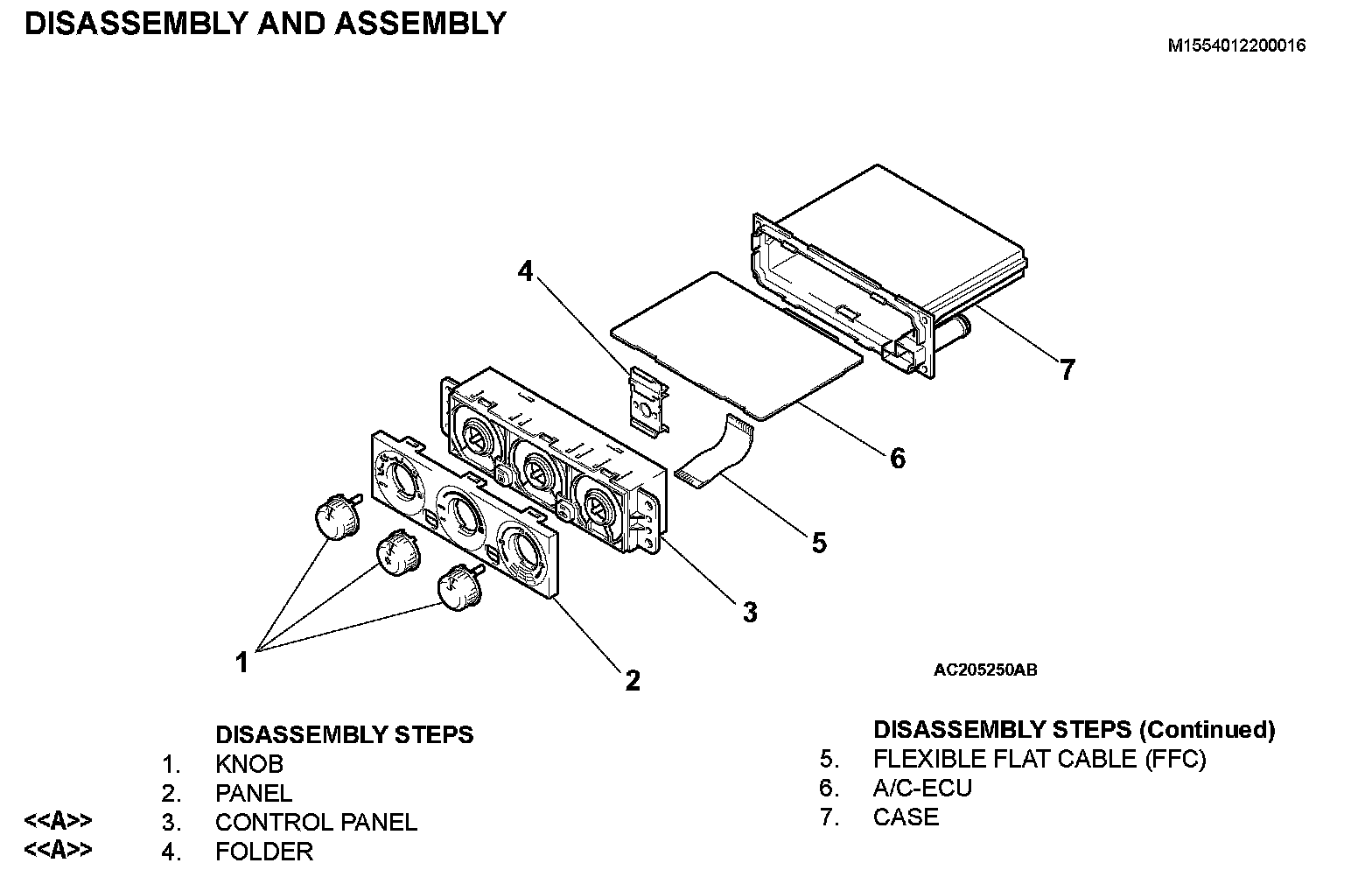

A/C CONTROL PANEL AND A/C CONTROL UNIT




DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINT

<> FCC REMOVAL




When disconnecting the FCC, always pull the cable by gripping the connector, not the cable.
