Engine Control Module: Diagrams
ECM Connector Terminal Arrangement
PCM Connector Terminal Arrangement

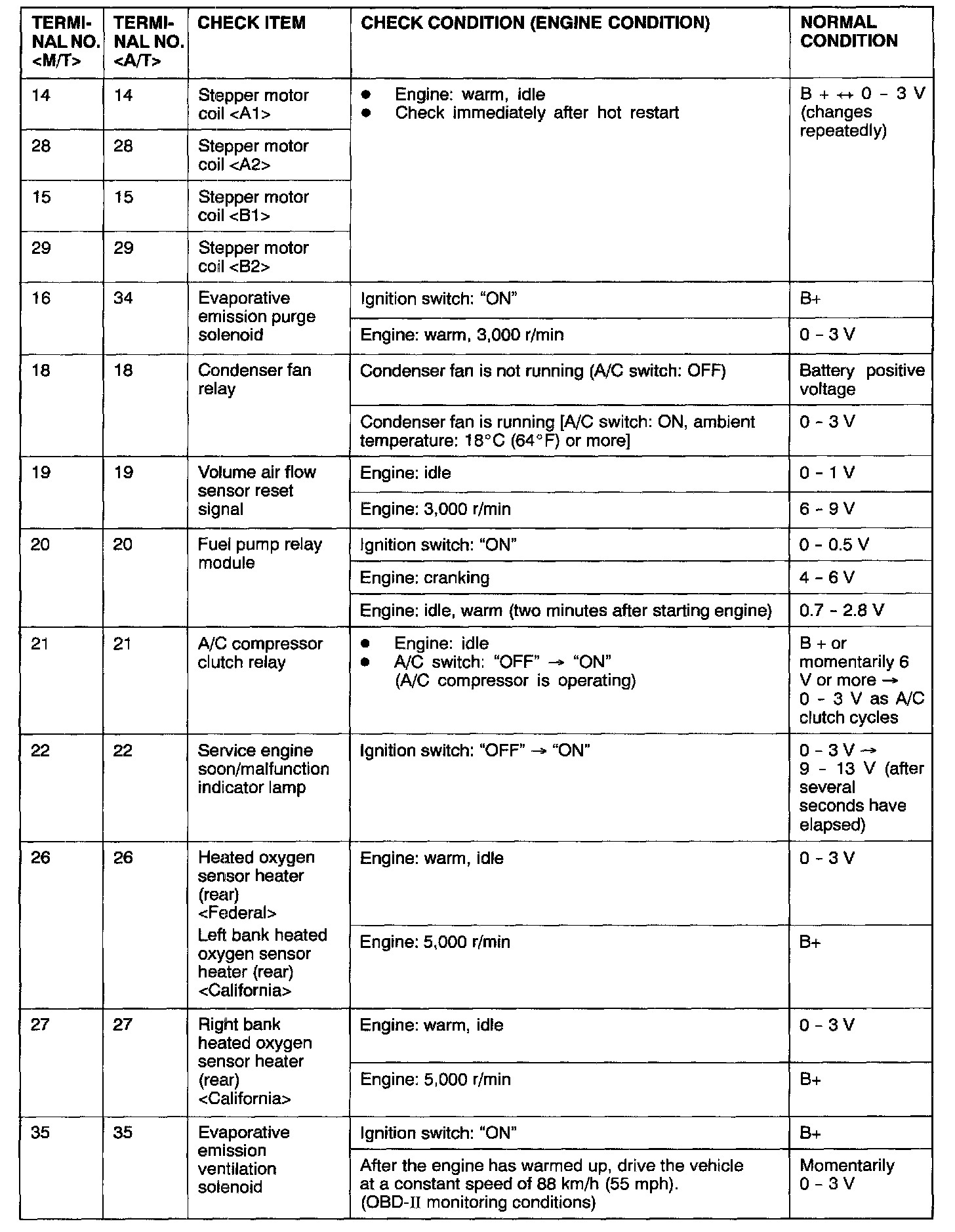

Terminals 14 -35:

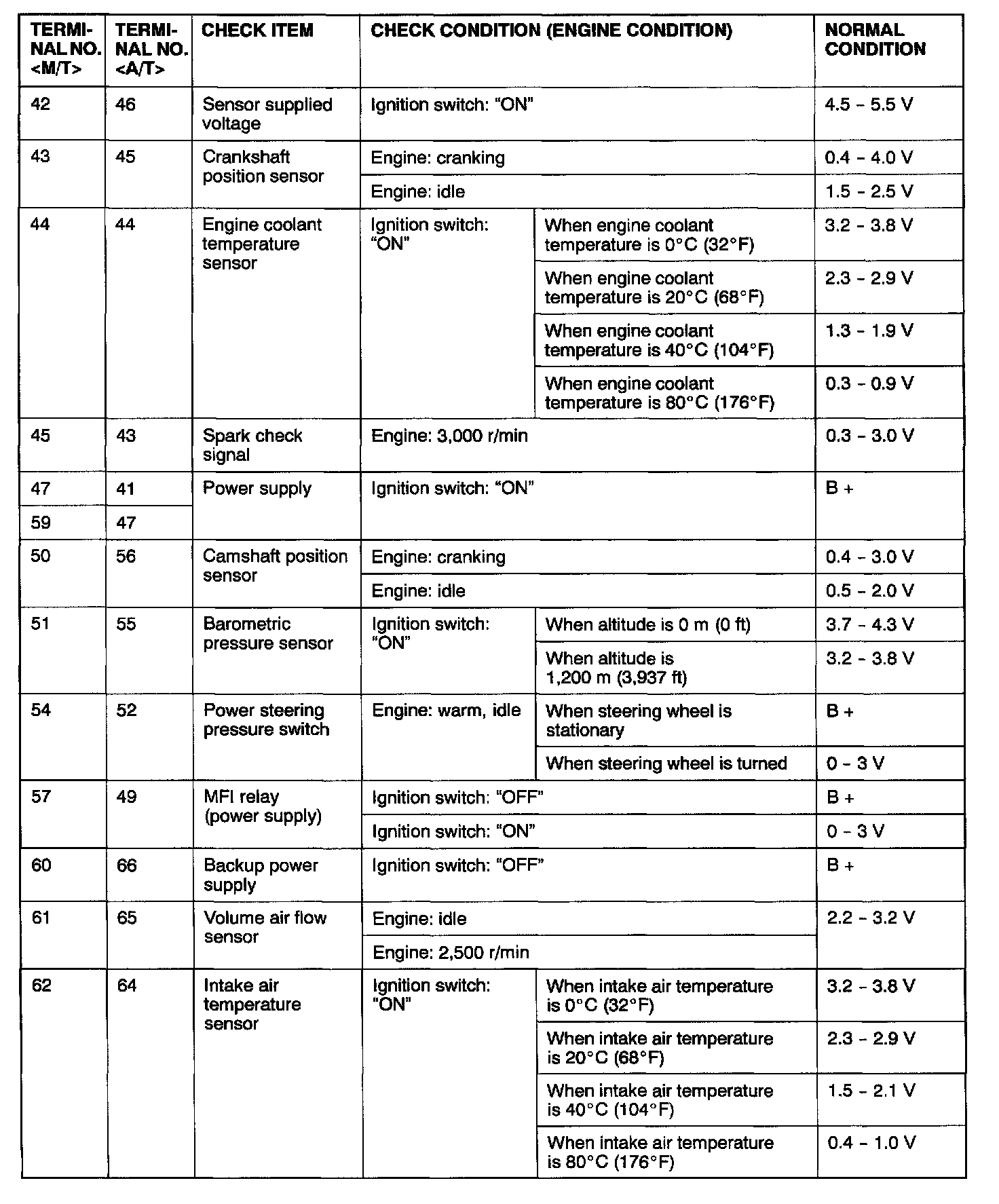

Terminals M/T 42 - 62 And A/T 46 - 64:
Terminals M/T 65 - 83 And A/T 61 - 83:
Terminals M/T 92 - 99 And A/T 91 - 98:
CHECK AT THE ENGINE CONTROL MODULE (ECM)
Engine Control Module (ECM) Connector Terminal Arrangement
