Engine Control Module: Testing and Inspection

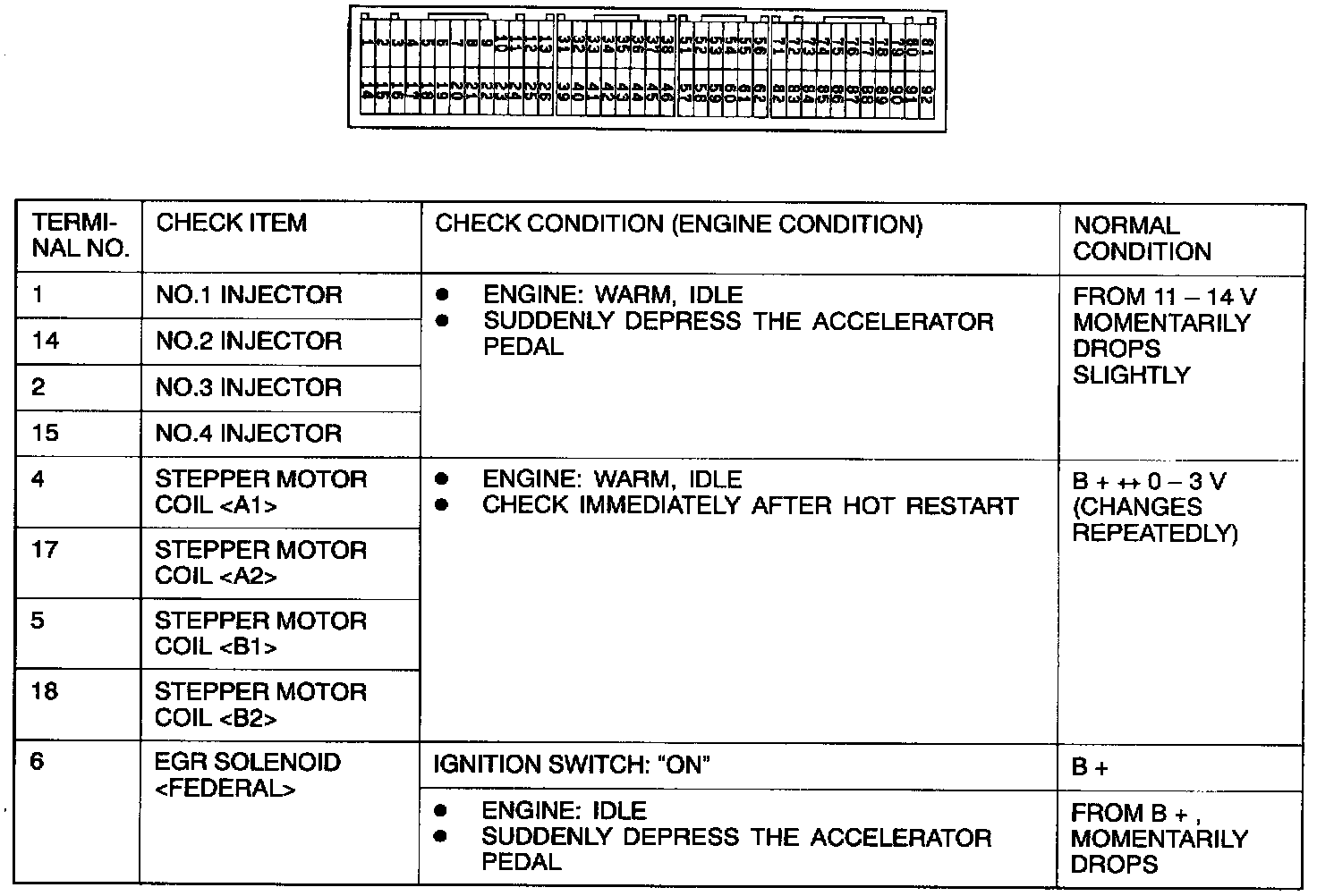

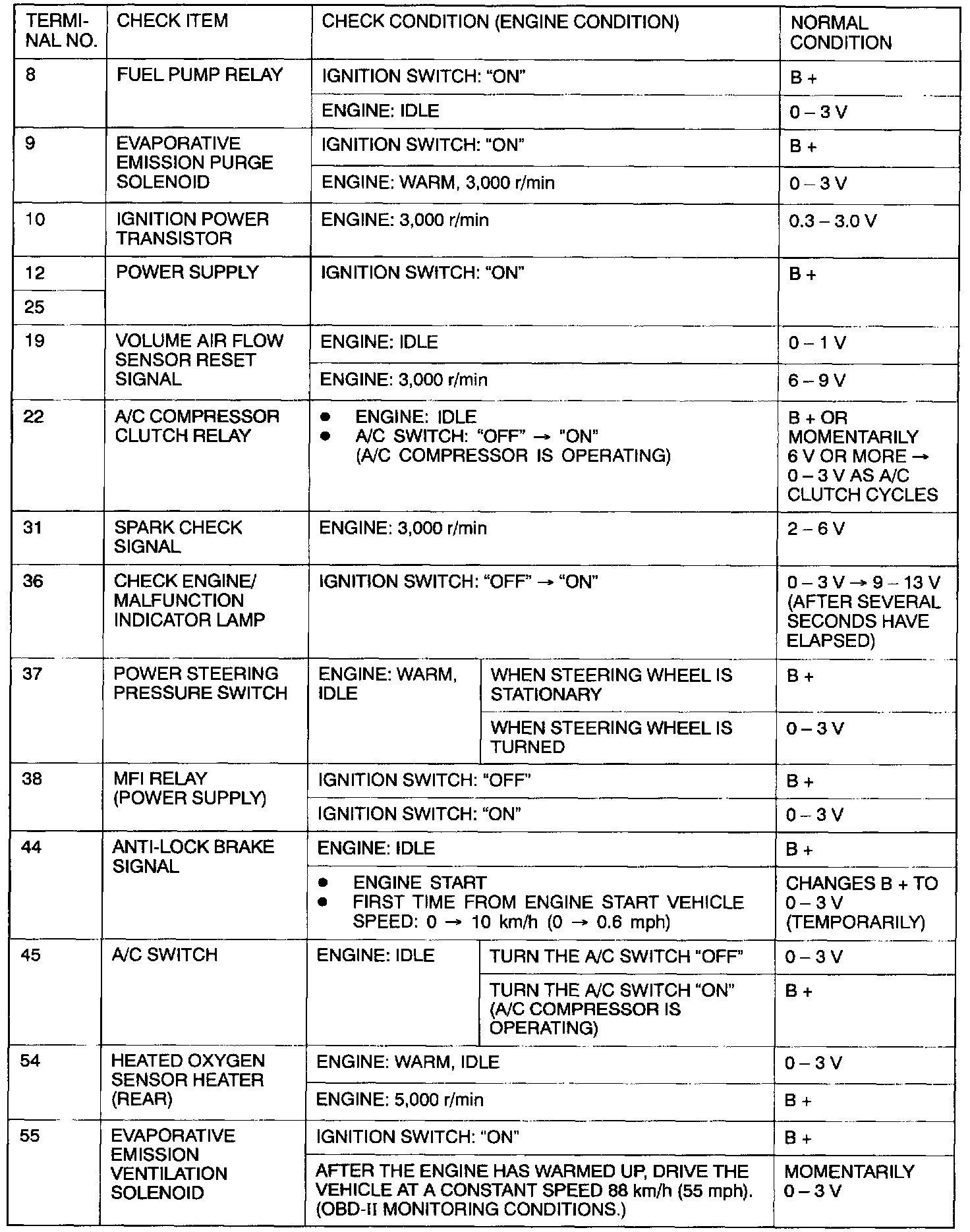

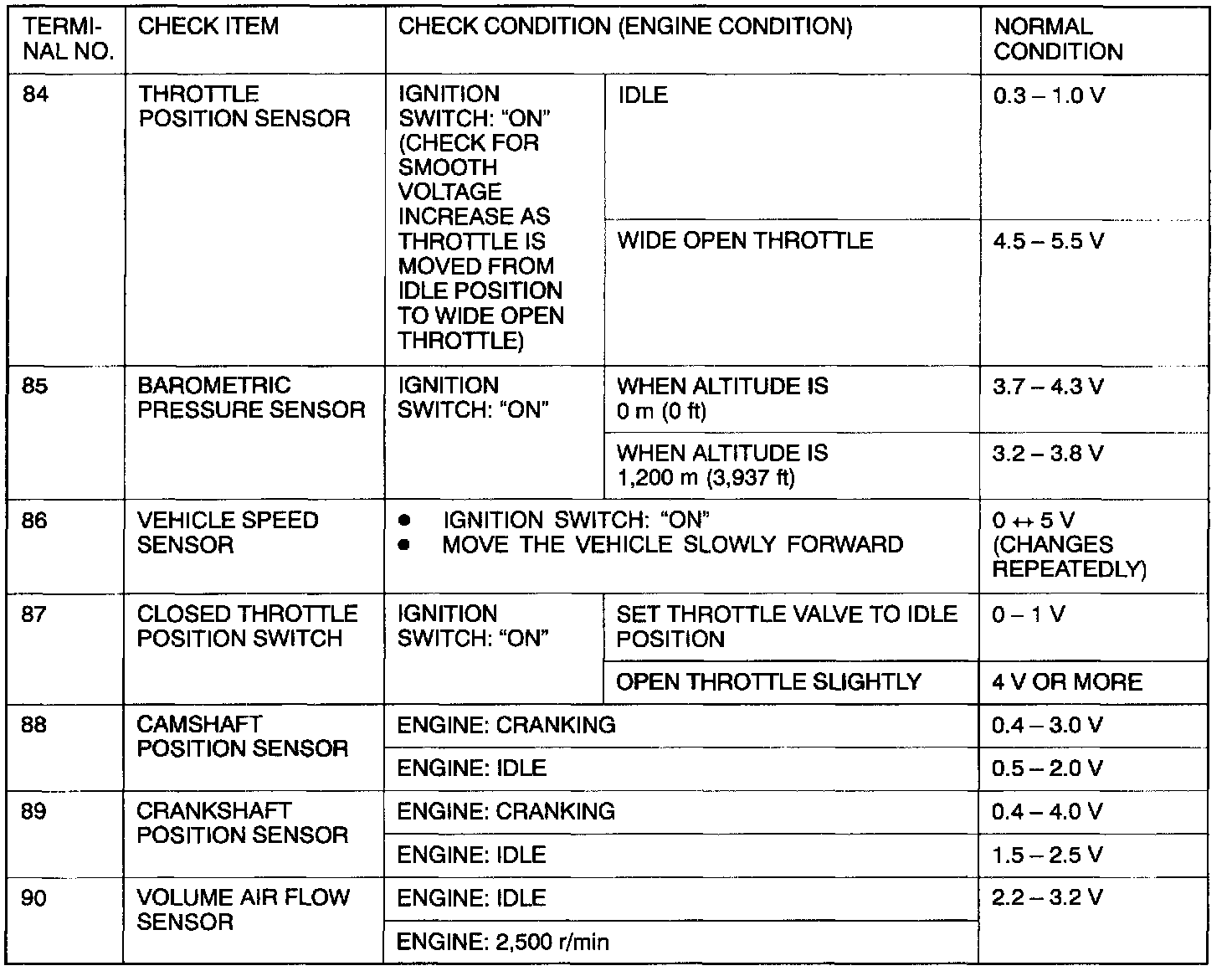

ECM CONNECTOR TERMINAL CHECK CHART (Harness Connected)

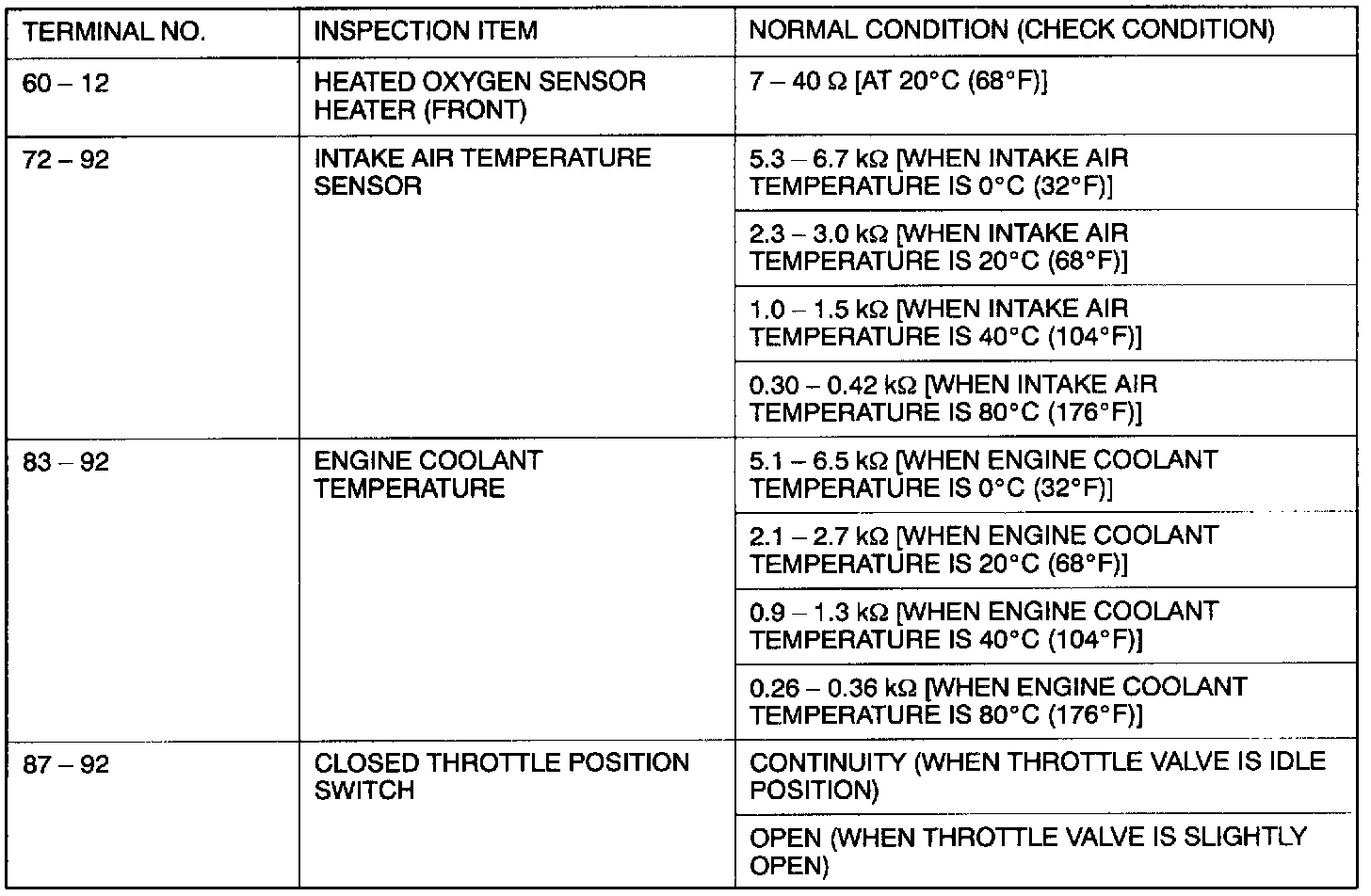

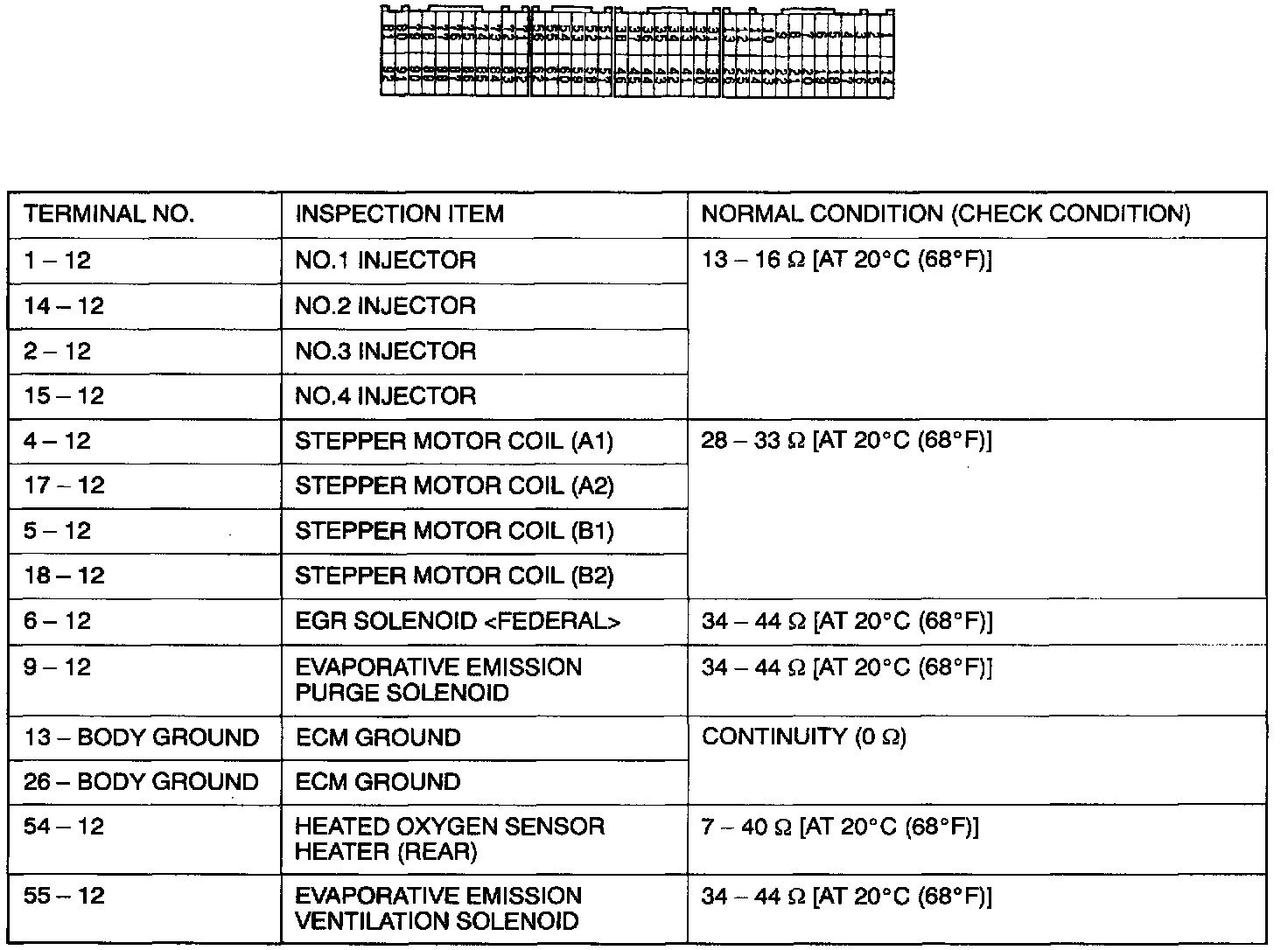

ECM CONNECTOR TERMINAL CHECK CHART (Harness Disconnected)
