Headliner: Service and Repair

51 44 013 Removing And Installing/Replacing Headlining (On Version With Panorama Sunroof)







Necessary preliminary work:
- Remove trim panel for roof pillar at front (A pillar) left/right
- Remove all sun visors and counter-supports
- Remove roof operating facility
- Remove inside mirror
- Release edge protection in area of headlining
- Remove front roofliner cover
- Remove trim panels for door posts
- Remove front/rear grab handles
- Remove interior roof light
- Remove rear roofliner cover
- Remove driver's seat.
- Remove left rear seat
- Remove trim panel for roof pillar at rear (C-pillar) left/right
- Remove trim panel for roof pillar (D-pillar) at left/right







Release expansion rivet (1).

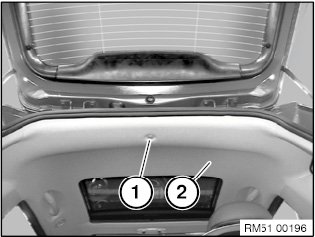

Release expansion rivet (1).
Lay headlining (2) downwards.

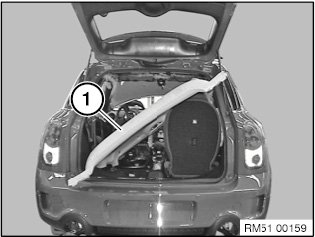

Tilt headlining (1) and feed out through luggage compartment lid cutout.







Installation sequence:
1. Secure headlining with edge protection
2. Engage retaining clips front/rear
3. Feed in rubber grommet of inside mirror wiring harness
4. Screw down grab handles at front left and right
5. Screw down grab handles at rear left and right
6. Screw down sun visors and counter supports
