Instrument Panel

Instrument Displays

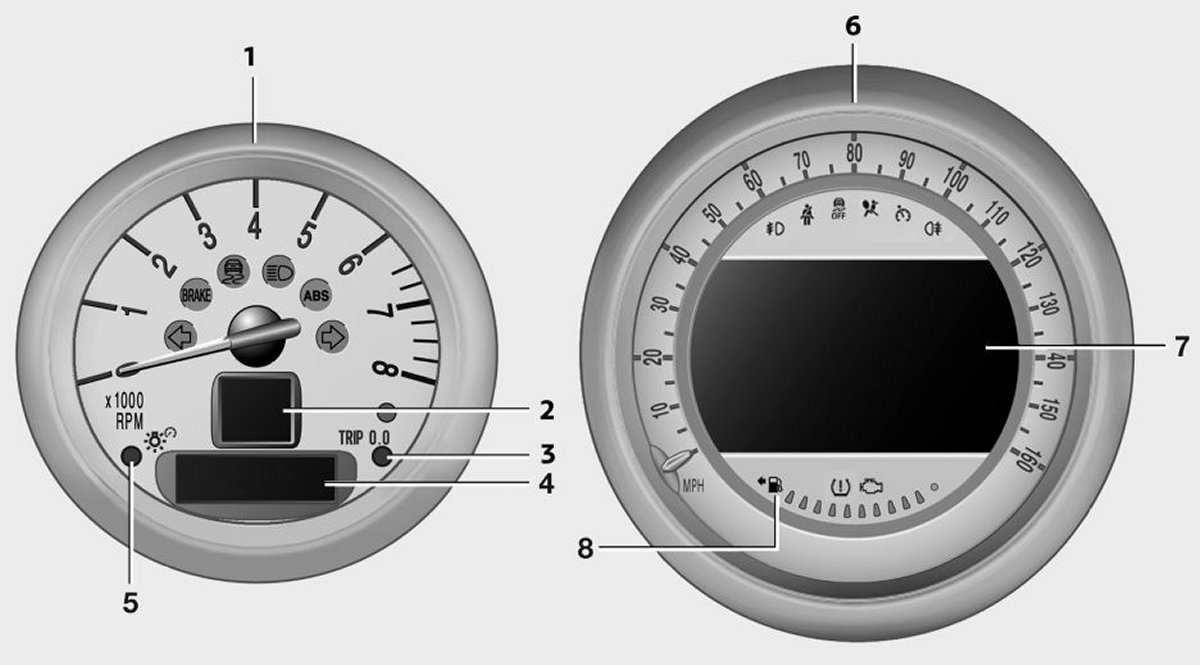

Displays



Indicator lamps without test messages.

1. Tachometer

2. Display for:
Current speed
Indicator/warning lamps
GP mode (JCW GP models)

3. Resetting the trip odometer

4. Display for:
Automatic Transmission position
Computer
Service requirements
Odometer and trip odometer
Flat tire monitor
Tire pressure monitor
Settings and information
Personal profile settings

5. Instrument lighting

6. Speedometer with indicator and warning lamps

7. Control display

8. Fuel Gauge
