27 10 110 Replacing Radial Shaft Seal For Connecting Shaft, Right

27 10 110 Replacing radial shaft seal for connecting shaft, right

Special tools required:







IMPORTANT:
After completion of work, check transmission oil level and top up if necessary.
Failure to comply with this requirement will result in serious damage to the transfer box.







Necessary preliminary tasks:
- Manual gearbox only: Drain and catch transmission oil.
- Remove right output shaft

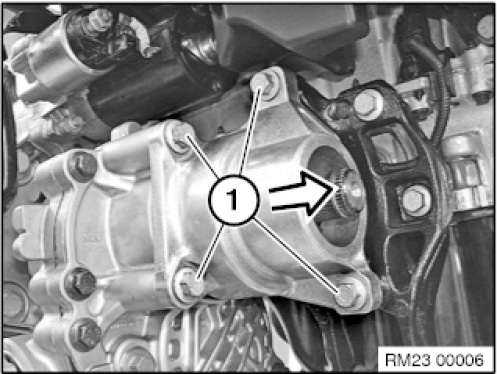

Release screws (1).
Remove PTO mount.
Tightening torque 27 10 2AZ.

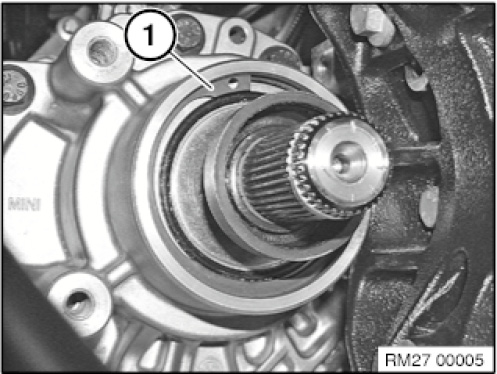

Remove circlip (1).

Installation note:
Install retaining ring (1).

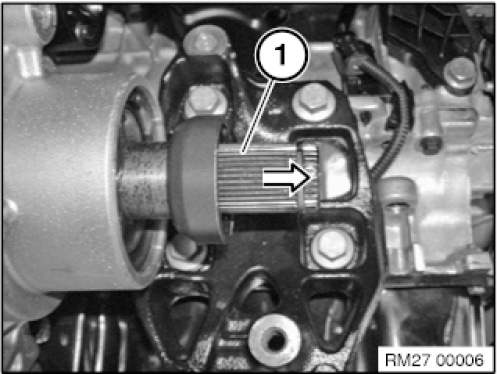

Pull the connecting shaft (1) out of the PTO housing.

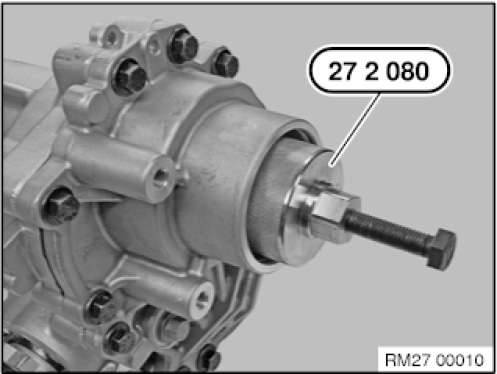

Screw in special tool27 2 080 until it is firmly connected with radial shaft seal.
Screw in bolt until the radial shaft seal is released from the housing.







Wet the sealing lip of the new radial shaft seal with oil.

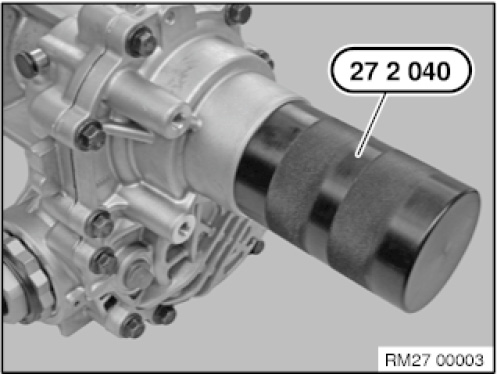

Drive shaft seal firmly home with special tool27 2 040.
