27 10 100 Replacing Radial Shaft Seal For Connecting Shaft, Left

27 10 100 Replacing Radial Shaft Seal for Connecting Shaft, Left N18






Special tools required:
- 27 2 060
- 27 2 020






Important!
After completion of work, check transmission oil level and top up if necessary.
Failure to comply with this requirement will result in serious damage to the transfer box!






Necessary preliminary tasks:
- Manual gearbox only: Drain and catch transmission oil.
- Remove transfer box (PTO)

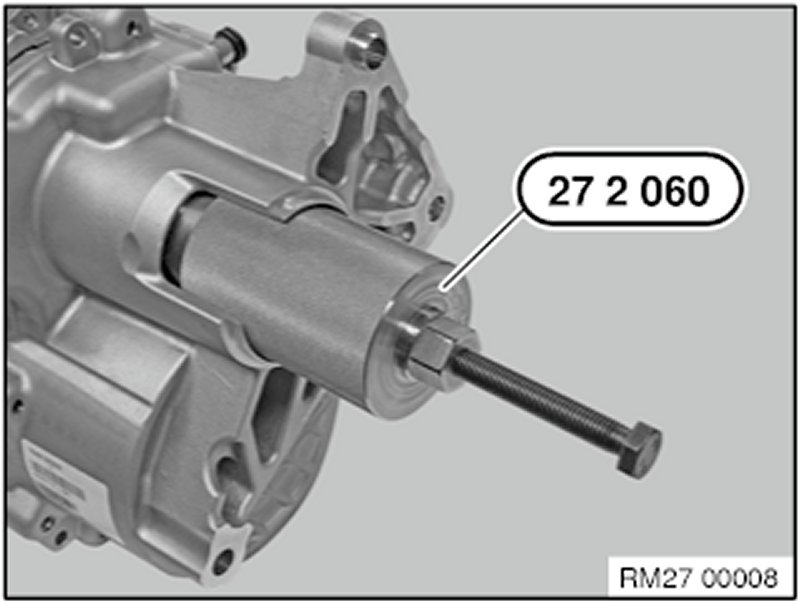

Screw in special tool 27 2 060 until it is firmly connected with radial shaft seal.

Screw in bolt until the radial shaft seal is released from the housing.






Wet the sealing lip of the new radial shaft seal with oil.

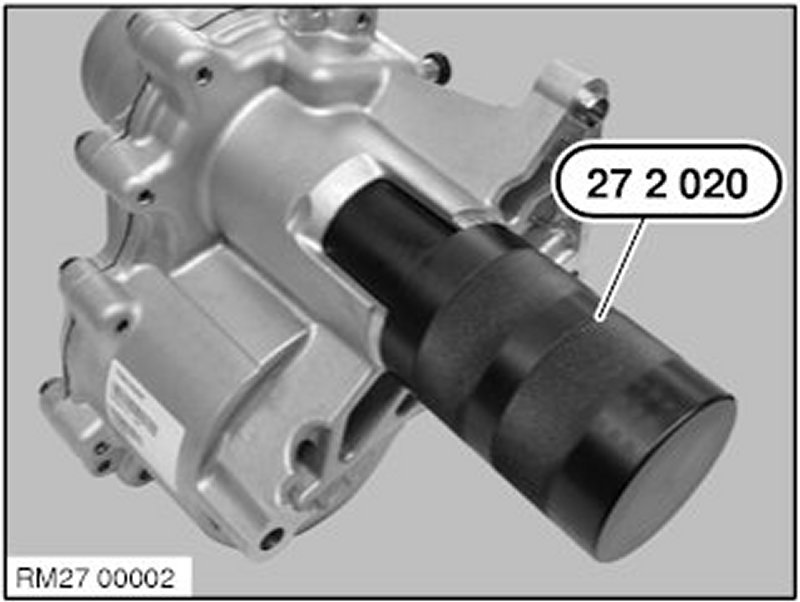

Drive shaft seal firmly home with special tool 27 2 020.
