26 11 052 Replacing Flexible Disc For Rear Propeller Shaft

26 11 052 Replacing flexible disc for rear propeller shaft





Necessary preliminary work:
- Remove exhaust system
- Remove heat shields





Release screws (1).

Tightening torque 26 11 4AZ.

Note:
To protect the universal joint, tie back propeller shaft in area of centre mount.






Release screws.

Tightening torque 26 11 2AZ.

Replace screws.

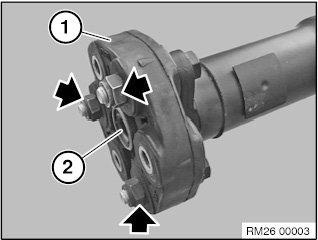

Release screws and remove flexible disc (1) from propeller shaft.

Tightening torque 26 11 3AZ.

Installation note:
Check centring (2).
Replace damaged centring mount.
Grease centring mount.

Important!
Replace screws and self-locking nuts.
