33 11 021 Replacing Radial Shaft Seal For Drive Flange on Rear Differential

33 11 021 Replacing radial shaft seal for drive flange on rear axle final drive





Necessary preliminary work:
^ Remove clutch of rear axle final drive.





Important!
- The rear axle final drive may not be tilted by more than 45° during the installation procedure.

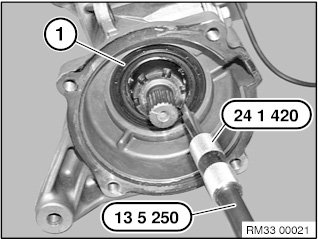

Pull out radial shaft seal (1) with special tools 24 1 420 and 13 5 250.





Wet sealing lips and housing sheet metal flange of new radial shaft seal with final drive oil.

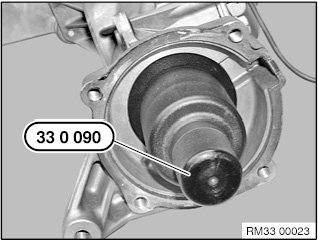

Drive in radial shaft seal with special tool 33 0 090.





After installation:
^ Check transmission oil level, correct if necessary.
