24 21 230 Removing Radial Shaft Seal of Right Axle Shaft (AISIN)

24 21 230 Removing radial shaft seal of right axle shaft (AISIN) all-wheel drive vehicle N18

Special tools required:







IMPORTANT:
After completion of work check gearbox oil level and for leaks.
The vehicle must be parked on a level surface in the 095\n workshop to check the transmission oil level.
Use only the approved transmission oil.

Failure to comply with this instruction will result in serious damage to the transmission.







Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations







Necessary preliminary tasks:
- Remove transfer box (PTO)
- Remove gearbox

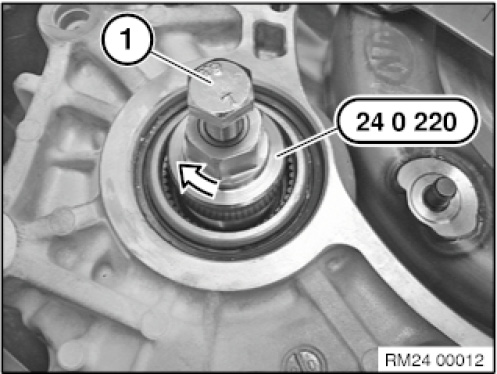

Screw in special tool 24 0 220 to the radial shaft seal (small diameter).
Screw in bolt (1) and pull out radial shaft seal.

IMPORTANT:
Risk of damage:
Damage to the transmission housing will result in oil leaks.







Installation note:
Coat sealing lips of new radial shaft seal with clean transmission oil.

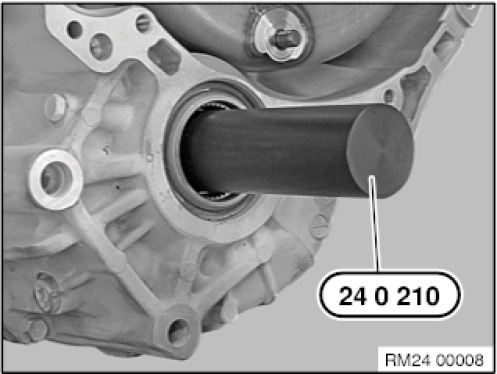

Using special tool 24 0 210 drive in radial shaft seal (small diameter) into housing.

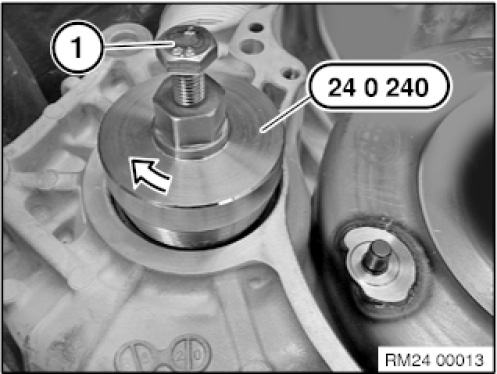

Screw in special tool 24 0 240 to the radial shaft seal (large diameter).
Screw in bolt (1) and pull out radial shaft seal.

IMPORTANT:
Risk of damage:
Damage to the transmission housing will result in oil leaks.







Installation note:
Coat sealing lips of new radial shaft seal with clean transmission oil.

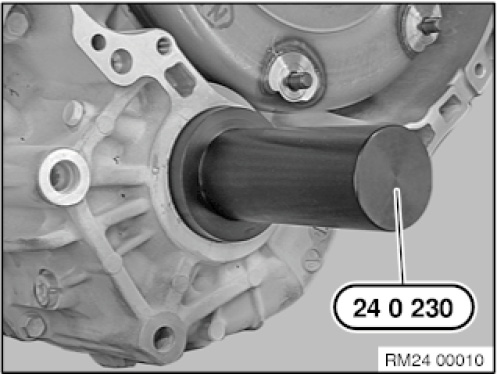

Using special tool 24 0 230 drive in radial shaft seal (large diameter) into housing.
