34 32 980 Replacing Rear Left or Right Brake Hoses

34 32 980 Replacing rear left or right brake hose






Necessary preliminary work:
- Read and comply with General Information.
- Partially detach underbody panelling
After completing tasks, bleed brake system.

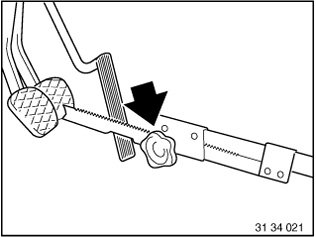

Press brake pedal down to floor and secure with pedal support.

Note:
The pedal support may only be released when the brake lines are reconnected.

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.






Important!

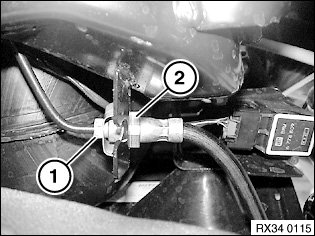

Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.

Disconnect brake hose from brake line (1).

Installation note:
Tightening torque 34 32 1AZ.

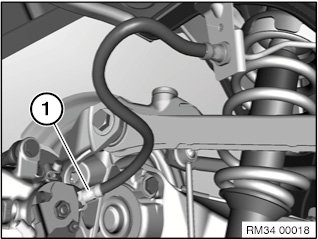

Detach brake hose (1) from brake calliper.

Installation note:
Tightening torque 34 32 3AZ.






Important!
Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

Note:
First tighten brake hose on brake calliper.

Insert brake hose in bracket and screw onto brake pipe.
