33 33 111 Replacing All Rubber Mounts For Rear Axle Support

33 33 111 Replacing all rubber mounts for rear axle support





Special tools required:
^ 33 0 001
^ 33 0 002
^ 33 0 011
^ 33 0 012
^ 33 0 051
^ 33 0 052
^ 33 4 140





Important!
Before removing rear axle support:
In order to avoid damage to the vehicle hoists, perform weight compensation on vehicle.
Load luggage compartment with sand bags.





Necessary preliminary work:
^ Remove rear axle support





Picture shows F01.

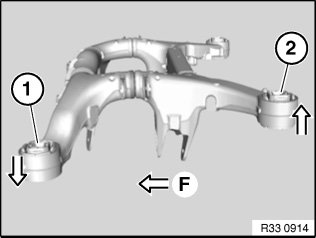

Press-out and press-in directions pictured.
^ Front rubber mount (1) is pulled out and in a downward direction.
^ Rear rubber mount (2) is pulled out and in an upward direction.





Note:
- Removal and installation are described on the front rubber mount.





Note:

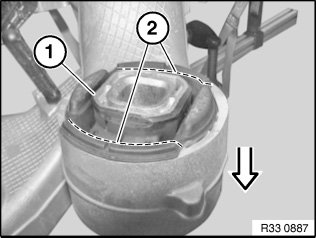

Edges (2) break off when rubber mount (1) is pulled out in the direction of arrow.

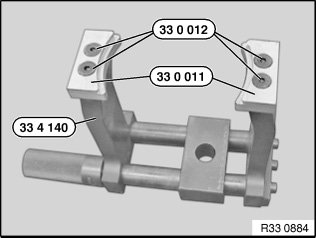

Assemble special tool 33 4 140 in conjunction with 33 0 011 and 33 0 012.

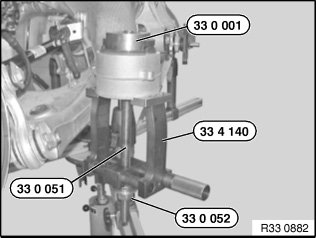

Withdraw rubber mount using special tools 33 4 140, 33 0 051, 33 0 052 and 33 0 001 from rear axle support bush.

Note:
Make sure special tool 33 0 001 is correctly positioned in relation to rubber mount.

Make sure special tool 33 4 140 is correctly supported on rear axle support bush.





Applicable to front rubber mount:

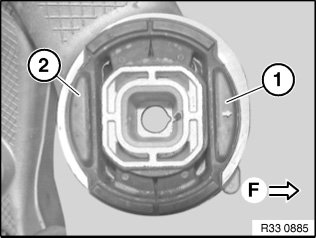

(View of rear axle support from above)

Important!
Arrow (1) must point on rubber mount (2) in direction of travel.

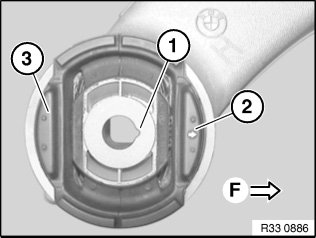

Applicable to rear rubber mount:

(View of rear axle support from below)

Important!
Notch (1) and arrow (2) on rubber mount (3) must point in direction of travel.





Coat rubber mount with Circo Light.

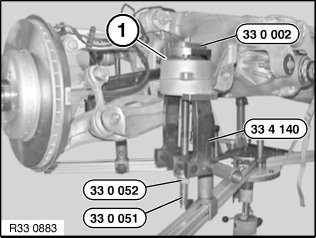

Draw in rubber mount (1) with special tools 33 0 002, 33 4 140, 33 0 052 and 33 0 051 as far as it will go into rear axle support bush.





After installation:

For F01/F02/F07 only:
^ Activate and fill air suspension system
