Splash Guard: Service and Repair

51 47 490 Removing and installing / replacing front underbody protection





Note:
Picture created using the R56 COOPER D as the example. There may be differences in detail in the case of other models.

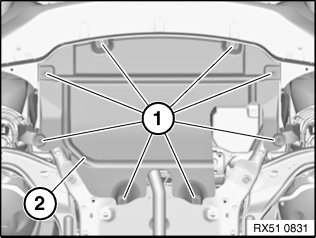

Release screws (1).

Pull forward underbody protection (2) under bumper trim and remove.

Installation:
Centre underbody protection and tighten down screws.
