Body - Rattling Noise From The Panoramic Sunroof
SI M54 02 11Special Roofs
June 2011
Technical Service
SUBJECT
Rattling Noises from the Panoramic Roof
MODEL
R60 (Countryman) produced August 1, 2010 through March 27, 2011
SITUATION
Rattling or knocking noises can be heard from the rear area of the sunroof when driving at speed with a side window or the sunroof partially opened.
CAUSE
The sunroof drain flaps on the rear of the drain tubes are vibrating due to changes in the cabin pressure.
PROCEDURE
Refer to the attachment and remove both drain flaps.

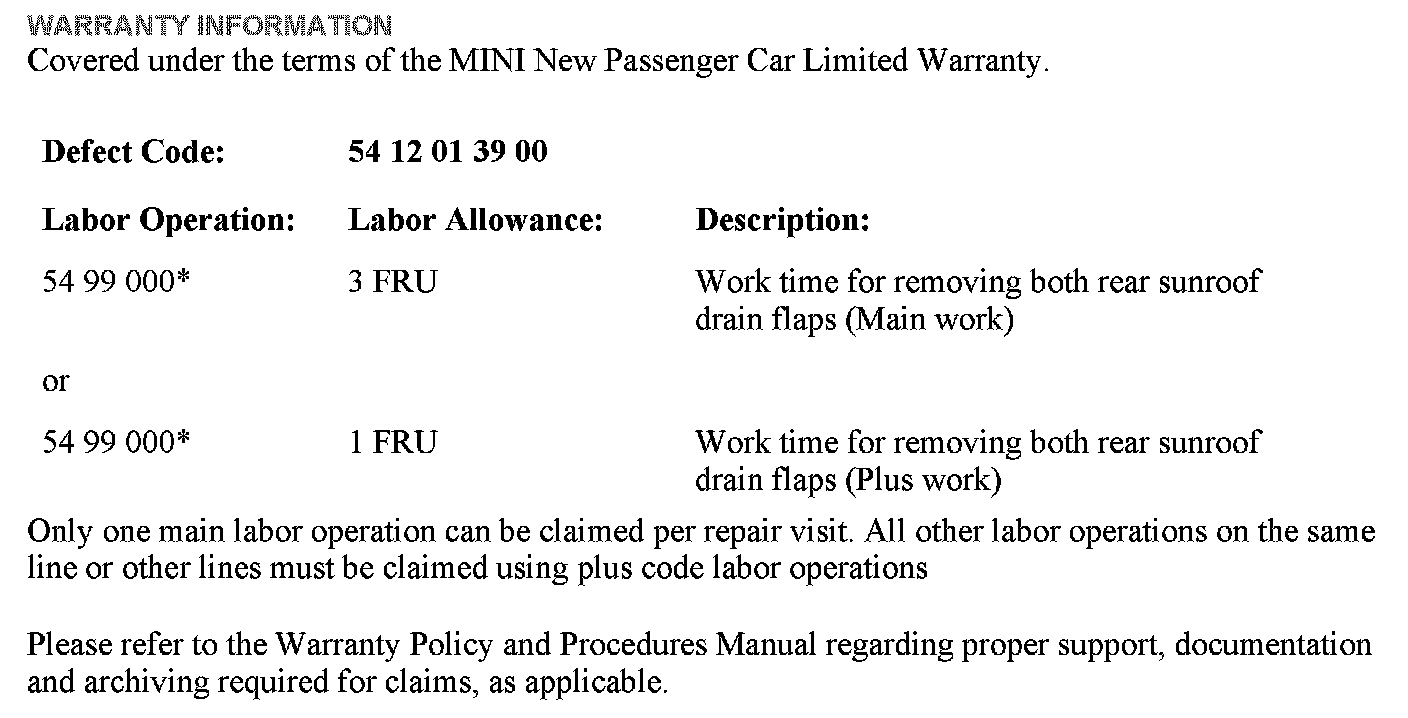

WARRANTY INFORMATION
ATTACHMENT

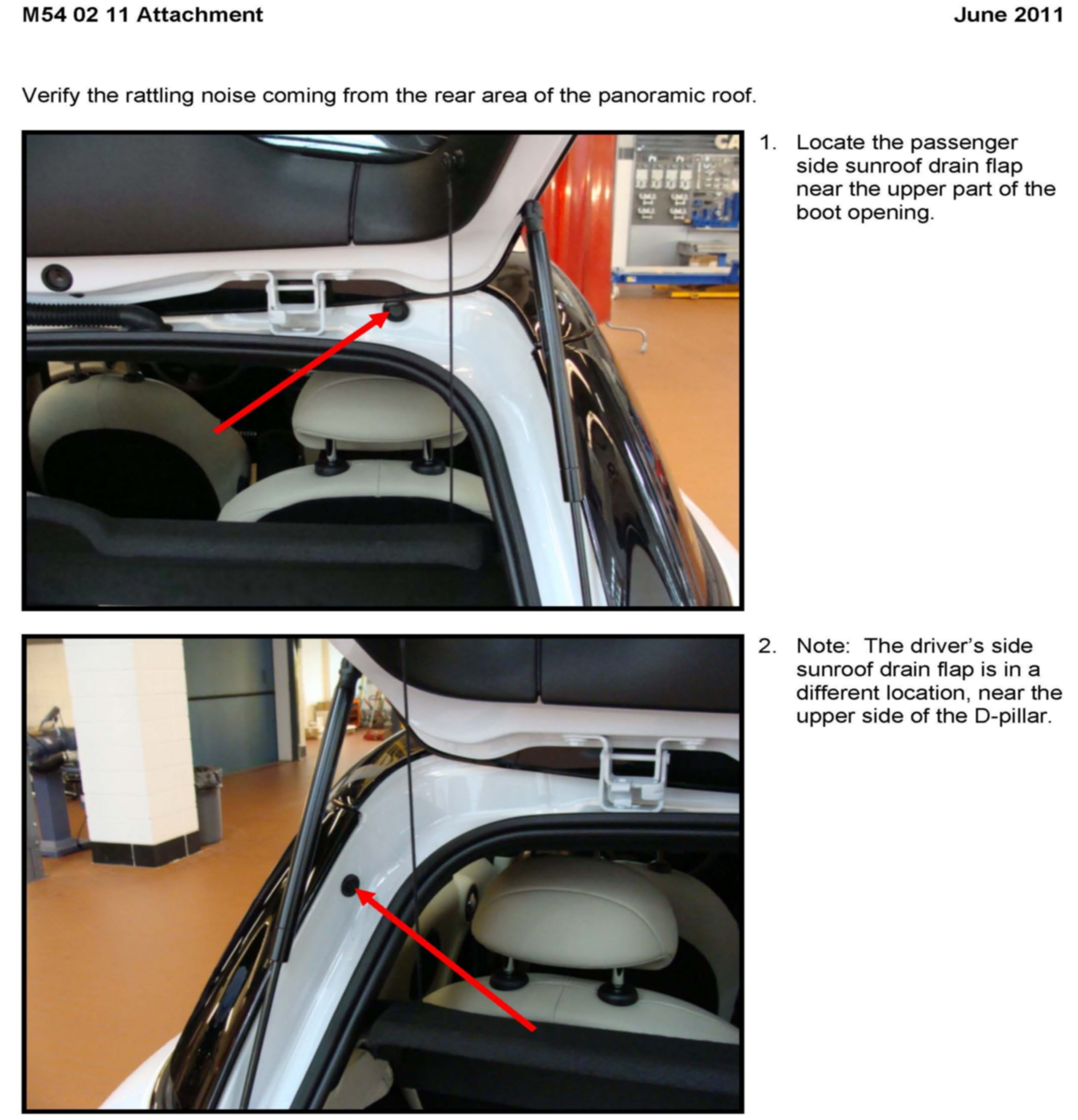

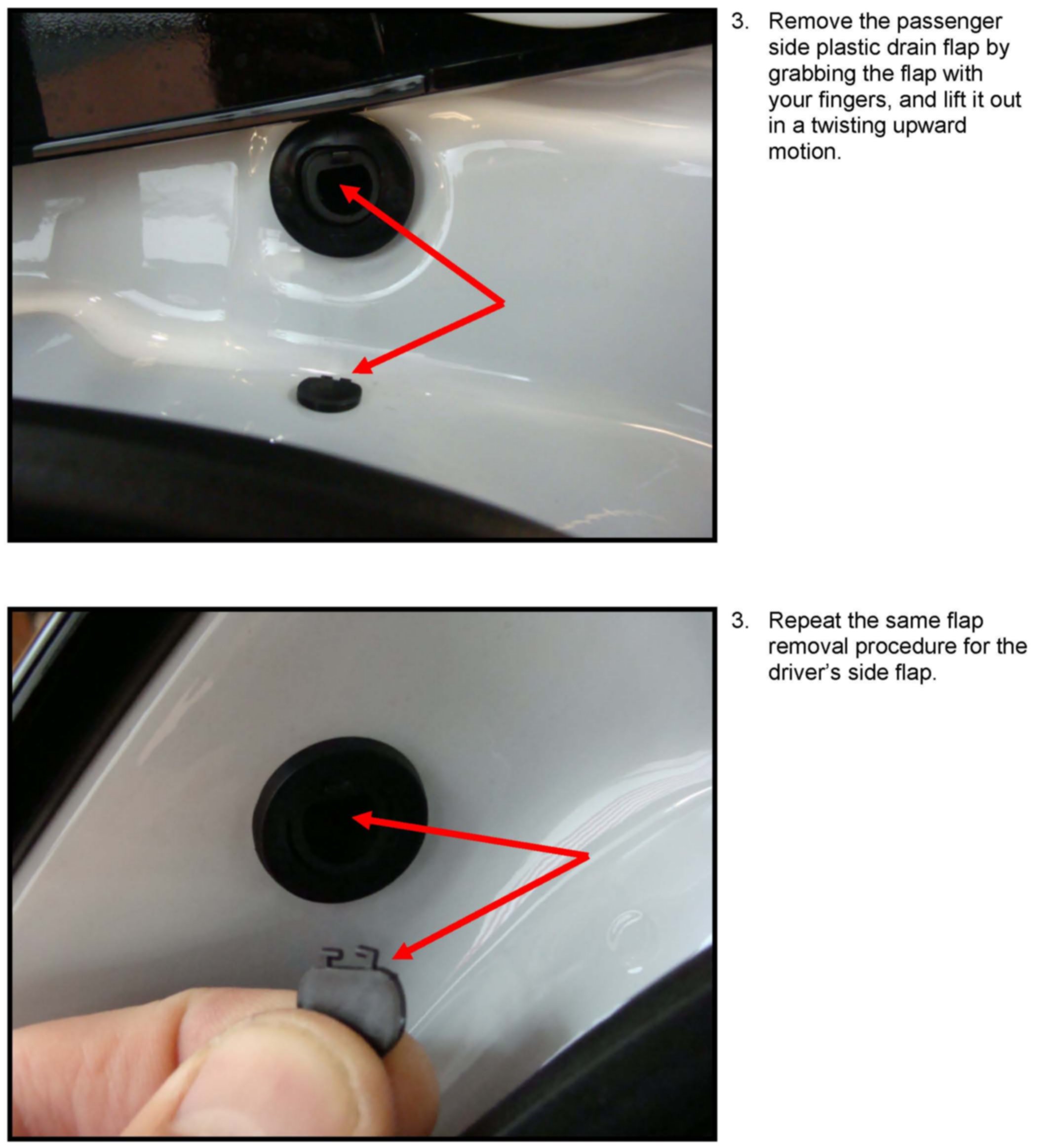

Repair Procedure
