51 43 259 Removing and Installing/Replacing Trim Panel For Rear Roof Pillar (D-Pillar), Left or Right

51 43 259 Removing And Installing/Replacing Trim Panel For Rear Roof Pillar (D-Pillar), Left Or Right

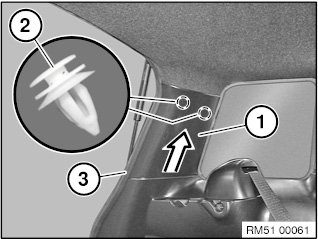

Detach edge protection (3) in area of trim panel (1).

Detach trim panel (1) from clip (2) towards inside.

Remove trim panel (1) upwards.

Installation note:
Make sure edge protection (3) is correctly seated.







Installation note:
Replace clips (1).

Guides (2) on trim panel (3) must not be damaged.
