51 45 180 Removing and Installing (Replacing) Instrument Panel Trim, Bottom Left

51 45 180 Removing And Installing (Replacing) Instrument Panel Trim, Bottom Left







When working with trim panels, be sure that visible surfaces are not damaged or scratched (e. g. with sharp-edged tools).







Use special tool 00 9 325 to unclip the side dashboard cover (1) towards the rear.







Installation note:

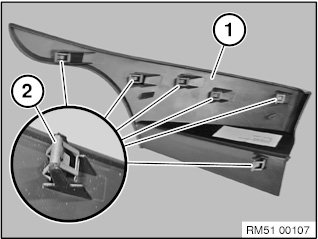

The clamps (2) on the side dashboard cover (1) must not be damaged or missing.

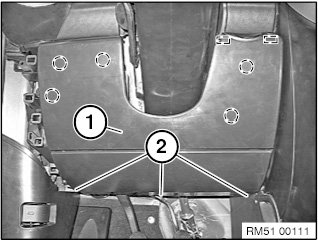

Release screws (2) on bottom left instrument panel trim (1).

Unclip fixing clips or unclamp retaining clips at marked locations.

Carefully feed out instrument panel trim at bottom left (1) slightly.

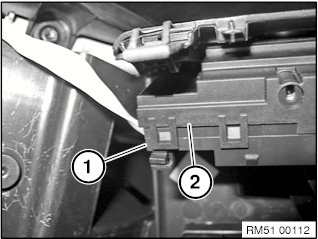

Unlock and disconnect plug connection (1) at insert for radio-operated key (2).







Installation note:

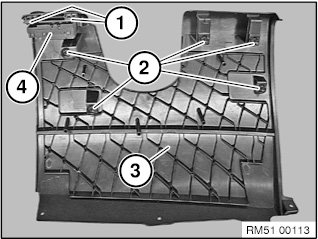

Retaining clips (1) and fixing clips (2) of instrument panel trim at bottom left (3) must not be damaged or missing.

Replacement
- Modify retaining clips (1) and fixing clips (2)
- Modify insert for radio-operated key (4)
