33 31 012 Removing and Installing/Replacing Rear Cross Member

33 31 012 Removing and installing/replacing rear cross member

Special tools required:







Necessary preliminary tasks:
- Remove exhaust system.

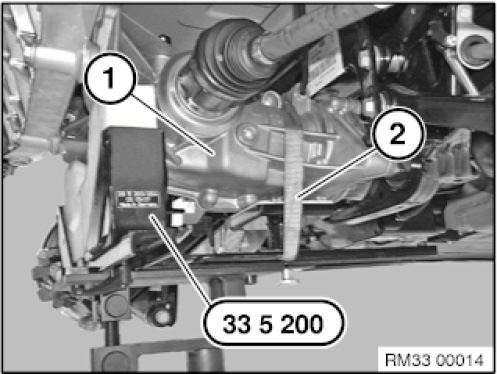

Support rear axle final drive (1) with workshop jack and special tool 33 5 200.
Secure rear axle final drive against falling out with tensioning strap (2).

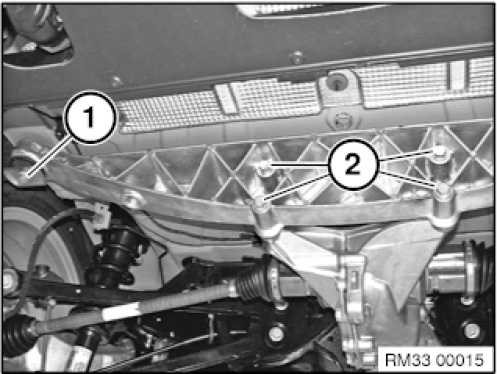

Release screw (1). (right-hand side is identical).
Tightening torque 33 31 2AZ.
Unfasten screws (2).
Tightening torque 33 31 3AZ.
Remove cross member.







Replacement:
- Convert vibration absorber and replace if necessary. (N47T only)
