24 11 170 Replacing Transmission Breather

24 11 170 Replacing transmission breather







IMPORTANT:
- Check breather for completeness after removal.
- Broken-off breather retaining lugs will result in serious damage to and failure of the automatic transmission.







Necessary preliminary tasks:
Remove rubber mounts for transmission mounting.

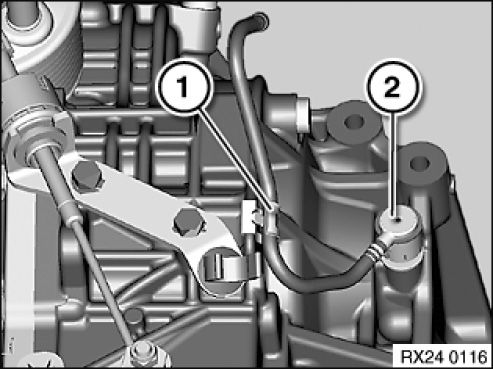

Remove hose from holder (1).
Lever breather (2) out of transmission case with a suitable tool.

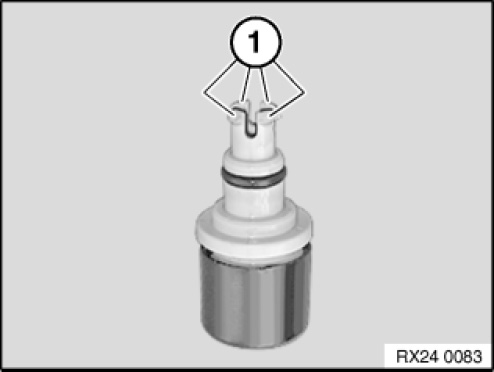

Check breather for completeness.
Retaining lugs (1) must not be broken off and be left behind in the transmission.
