Oil Pressure Sensor: Service and Repair

12 61 280 Removing and installing/replacing oil pressure sensor (N18)

Special tools required:







WARNING:
Risk of burning.
Only perform this repair work on an engine that has cooled down.







Necessary preliminary work:
- Switch off ignition.
- Remove fan cowl.







Installation location:
The oil pressure sensor is located in the oil filter housing.
Engine oil may emerge when oil pressure sensor is replaced; have a cleaning cloth ready.

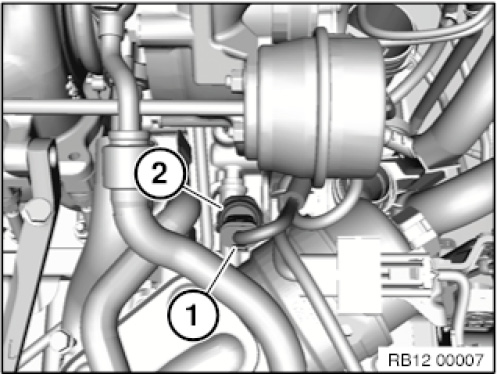

Unlock connector (1) and remove.
Release the oil pressure sensor (2) with special tool 11 7 020.

Installation note:
- Replace sealing ring.

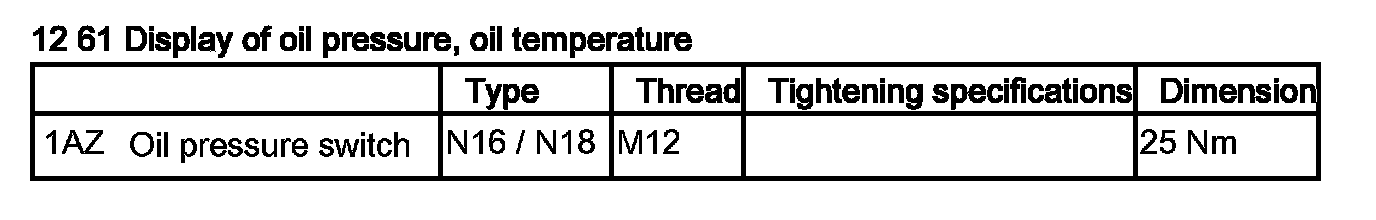

- Tightening torque 12 61 1AZ.
- Check engine oil level, top up engine oil if necessary.







Assemble engine.
