Vacuum Pump: Service and Repair

11 66 000 Removing and installing or replacing vacuum pump (N18)





Release vacuum connection to brake servo.

Pull off vacuum control for the exhaust turbocharger.

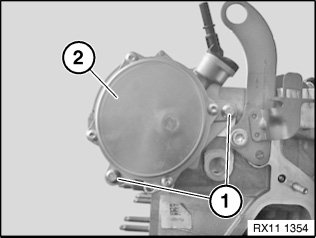

Release screws (1).

Tightening torque: 11 66 1AZ.

Remove vacuum pump.





Installation note:

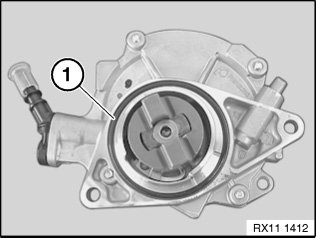

Replace sealing ring (1).





Assemble engine.
