16 12 010 Removing and Installing/Replacing Carbon Canister (US Version With DMTL)

16 12 010 Removing and installing/replacing carbon canister (US version with DMTL)







Necessary preliminary tasks:
- Remove rear right underbody panelling

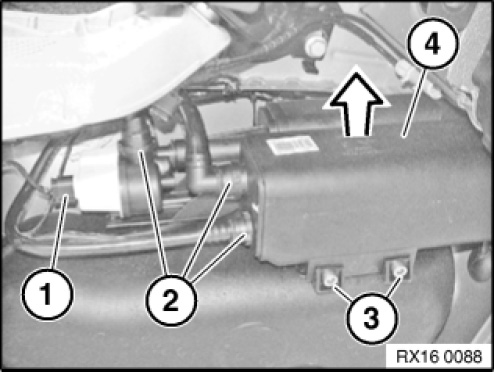

Disconnect plug connection (1).
Unlock and detach snap fastener (2).
Release screws (3).
Press off carbon canister (4) with tank leakage diagnosis module in direction of arrow.







Installation note:

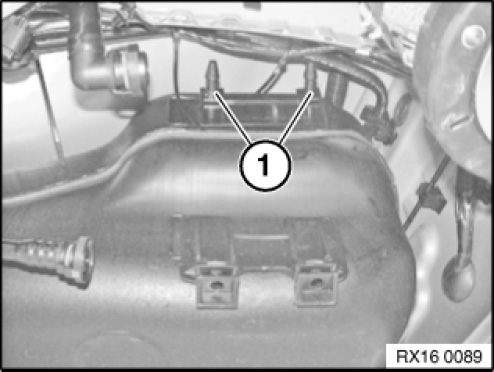

carbon canister must engage correctly in guide (1).

Replacement:
- Modify tank leakage diagnosis module
