16 12 010 Removing and Installing/Replacing Carbon Canister (50-Liter Tank)

16 12 010 Remove, install/replace carbon canister (50-litre tank)







Necessary preliminary tasks:
- Remove rear right underbody panelling (not in R57)

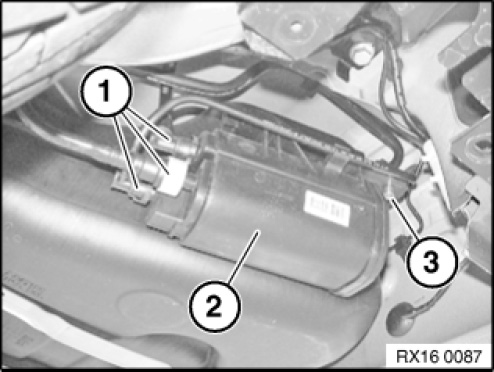

Unlock and detach quick-connect couplings (1).
Release screw (3).
Remove carbon canister (2) from the bracket and remove component.

Installation note:
Please ensure snap fasteners lock correctly.
