Replacing Speedometer

62 10 651 - Replacing speedometer





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove complete instrument cluster Removing and Installing Complete Instrument Cluster

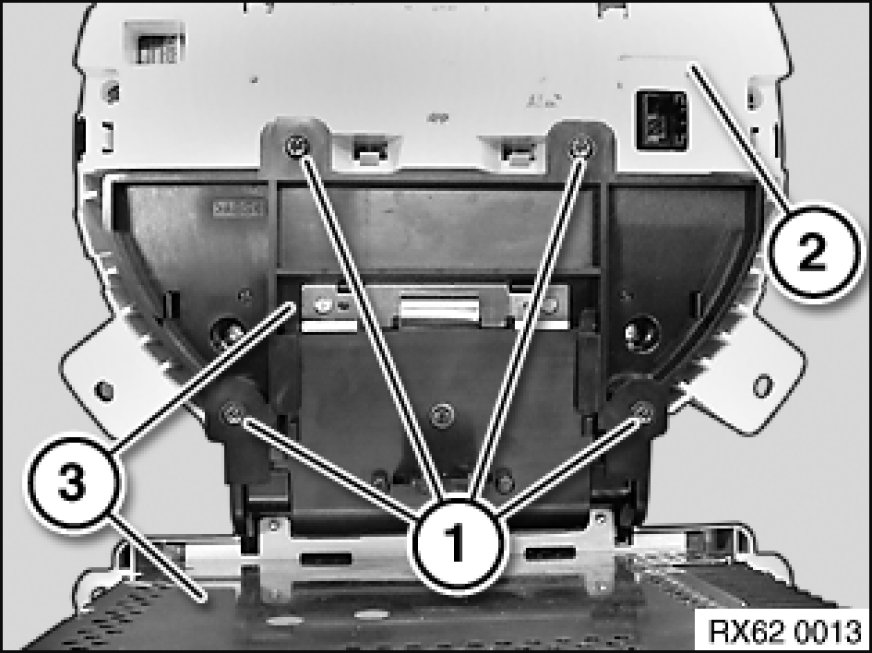

Release screws (1).
Remove speedometer (2) from radio (3).
