11 00 ... Removing and Installing/Replacing Acoustic Cover

11 00 ... Removing and installing/replacing acoustic cover (N18)

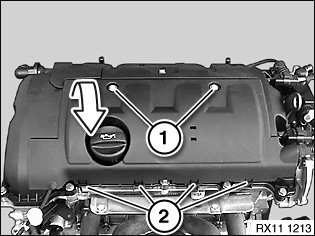

Release screws (1).

Tightening torque: 11 12 11AZ.

Release acoustic cover at clamps (2).

Lift off acoustic cover in direction of arrow.
