11 41 000 Removing and Installing/Replacing Oil Pump

11 41 000 Removing and installing oil pump (N18)





Necessary preliminary work:
^ Removing oil sump.

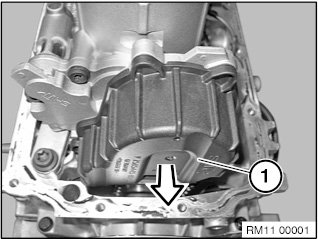

Pull off cover (1) in direction of arrow.





Release screw (1).

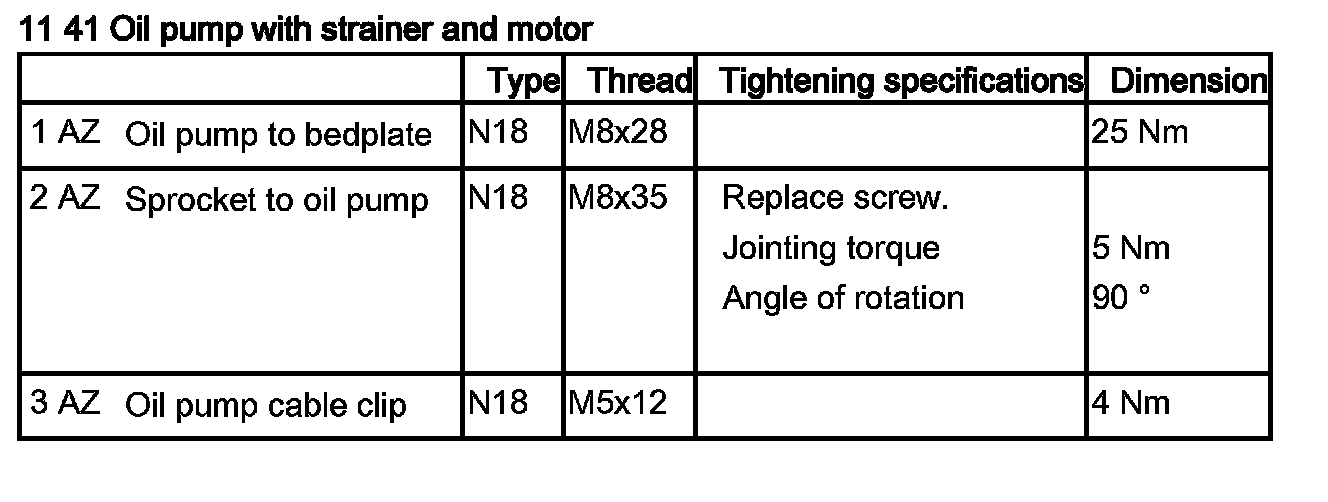

Tightening torque: 11 41 2AZ.

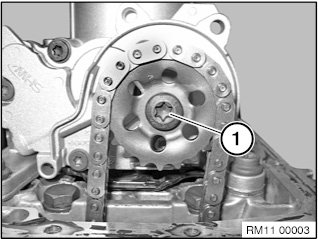

Counter-hold crankshaft central bolt to release central bolt (1).

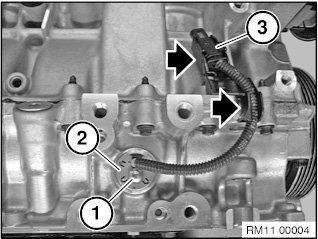

Release screw (1).

Remove sealing plate (2).

Disconnect plug connection (3).

Unclip cable from cable clip.

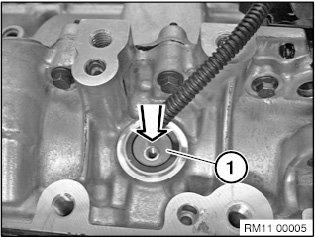

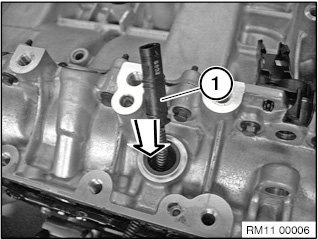

Press out counter support (1) with cable in direction of arrow.





Feed cable (1) through the bore hole.

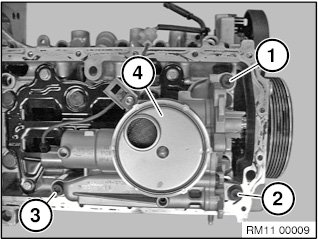

Unfasten screws (1,2 and 3).

Remove oil pump (4).

Tightening torque: 11 41 1AZ.

Installation note:
Clean sealing surfaces.

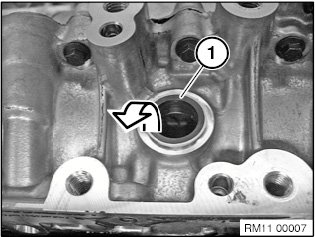

Remove sealing ring (1) in direction of arrow.

Installation note:
Replace sealing ring (1).





Installation note:

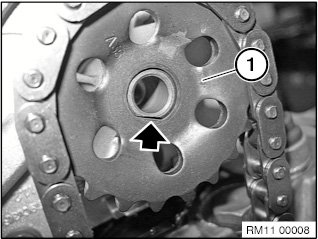

Position oil pump chain with sprocket (1) on the oil pump shaft.





Insert screw (1).

Tightening torque: 11 41 2AZ.

Counter-hold crankshaft central bolt to secure central bolt (1).





Seat cover (1) on oil pump (2) in direction of arrow.





Assemble engine.
