Oil Pan: Service and Repair

11 13 000 Removing and installing, sealing or replacing oil sump (N18)

Special tools required:





Necessary preliminary work:
^ Drain engine oil.

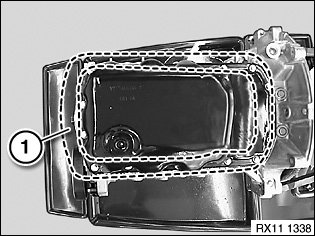

Unscrew sump bolts in area of line (1).

Tightening torque: 11 13 2 AZ.

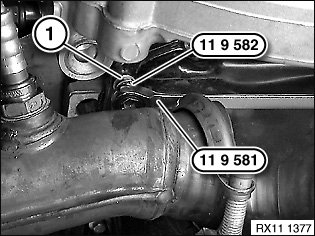

Remove bolt (1) above exhaust manifold using special tools 11 9 582 and 11 9 581.

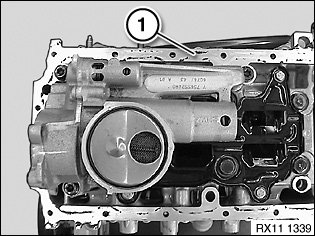

Clean sealing surface (1) with special tool 11 4 470.





Important!
Do not use adhesive sealing bead.

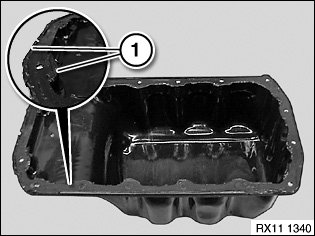

Remove protruding or sticking-out sealing beads (1) with a sharp knife.

Installation note:
Do not use liquid seal.

A metal substrate gasket is available for repairs (see BMW Parts Service).





Assemble engine.
