Engine Oil Pressure: Testing and Inspection

11 40 000 Checking engine oil pressure (N18)

Special tools required:





Screw in the special tools 11 7 460 and 11 4 310.

Lightly oil the sealing ring on the pressure sensor (1) 100 Bar.





Unscrew the oil filter housing.

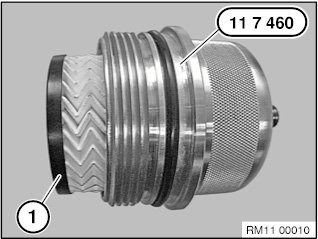

Insert the oil filter element (1) in the special tool 11 7 460.

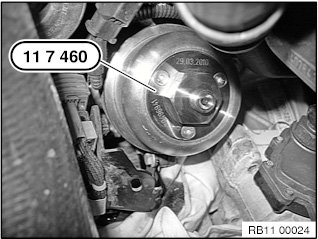

Screw in special tool 11 7 460.

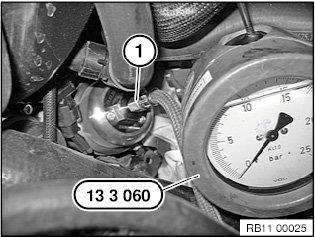

Check engine oil pressure with pressure gauge.

Connect special tools 11 9 560, 13 3 063 and 13 3 061.

Start engine and check engine oil pressure.





Check engine oil pressure with diagnosis system.

Screw special tool 11 7 460 onto the oil filter housing.

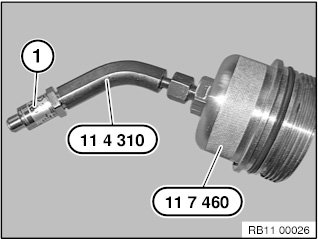

Screw special tool 11 4 310 to special tool 11 7 460.

Hand-tighten the 100 bar pressure sensor (1) on the special tool 11 4 310.

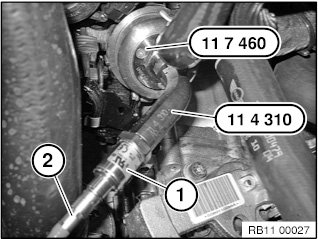

Connect the line (2) of the IMIB (Integrated Measurement Interface Box) to the 100 bar pressure sensor (1).

Start engine and check engine oil pressure.





Nominal values.

Assemble engine.
