Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

11 43 000 Removing and installing/replacing guide tube for dipstick (N18)





Necessary preliminary work:
^ Pull dipstick out of guide tube.

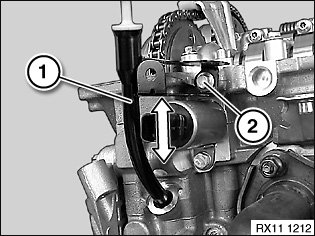

Release screw (2).

Tightening torque: 11 43 1AZ.

Remove oil dipstick (1) upward in direction of arrow.

Installation note:
Replace O-ring.





Assemble engine.

Check oil level, correcting if necessary.
