Harmonic Balancer - Crankshaft Pulley: Service and Repair

11 23 010 Removing and installing or replacing vibration damper (N18)





Necessary preliminary work:
^ Remove right wheel arch cover.
^ Remove drive belt.

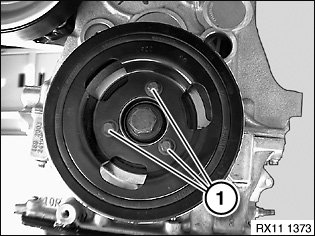

Release screws (1).

Tightening torque: 11 23 1AZ.

Remove vibration damper.





Assemble engine.
