Connecting Rod Bearing: Service and Repair

11 24 571 Replace all connecting rod bearings (N18)





Important!
All crank pins are connected with the crankshaft.
Modified procedure; the bearing shell colors are the same at the top and bottom.





Necessary preliminary work:
^ Remove all pistons.





Install new connecting rod bearing shells.

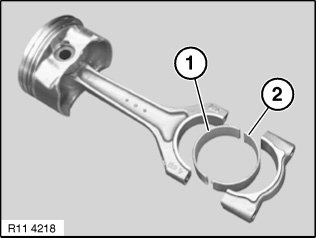

Insert connecting rod bearing shells (1 and 2).





Assemble engine.
