52 13 ... Removing and Installing Position Switch

52 13 ... Removing and installing position switch







Necessary preliminary tasks:
- Remove front seat

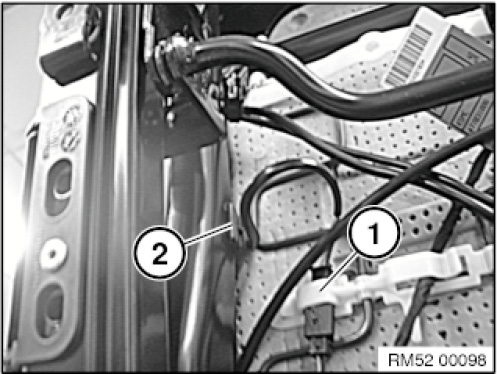

Unfasten plug connection (1) and disconnect.
Pull the metal clamp (2) off the seat mechanism.







Release screw (1).
Remove position switch (2).
