Headliner: Service and Repair

51 44 150 Replacing Trim For Front Roofliner







Necessary preliminary tasks:
Only on R57
- Open soft top
- Remove inside mirror

All versions
- Remove both trims for front roof pillar
- Remove roof operating facility

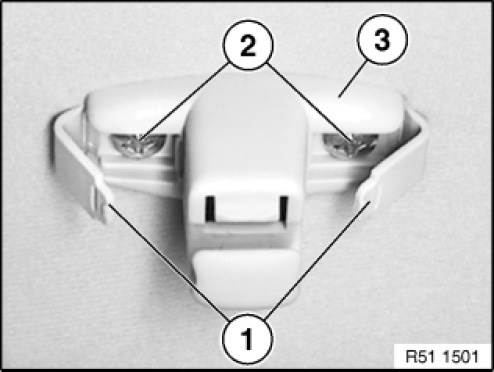

Remove both counter supports (3) from the sun visors, by lifting up the visors (1) and loosening the screws (2).
Remove counter supports (3).

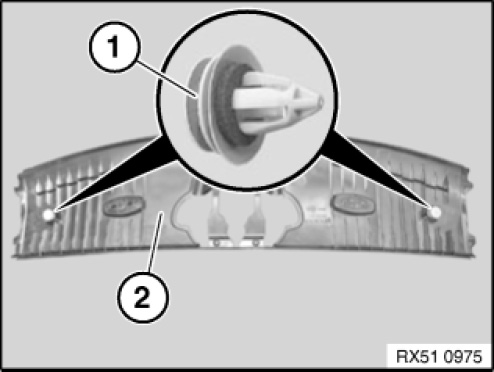

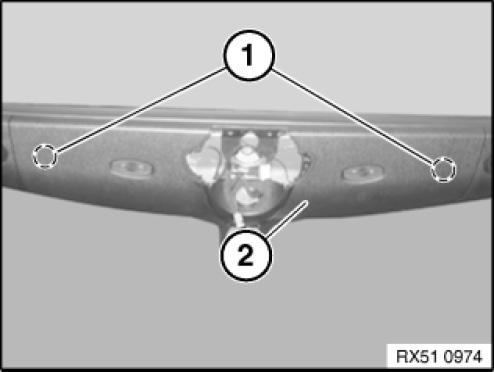

Unclip the retaining clips (1) downwards on the visor (2) and remove the visor (2).







Installation note:
Retaining clips (1) on the visor (2) must not be damaged.
