Front Bumper Bracket: Service and Repair

31 11 020 Removing and installing/replacing bumper bracket







Necessary preliminary work:
- Remove carrier for bumper trim

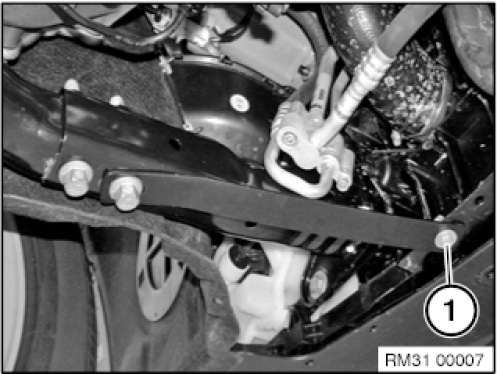

Undo bolt (1) at front panel strut.

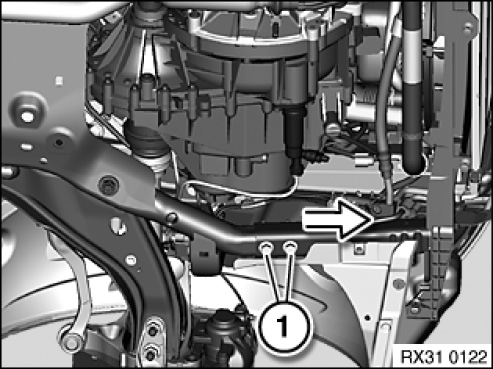

Release screws (1).
Pull off bumper bracket forwards from front axle support.

Installation note:
Tightening torque 31 11 3AZ
