64 11 855 Removing and Installing/Replacing Servodrive For Central Kinematics



64 11 855 Removing And Installing/Replacing Servodrive For Central Kinematics







Necessary preliminary tasks:
- Remove carrier for instrument panel

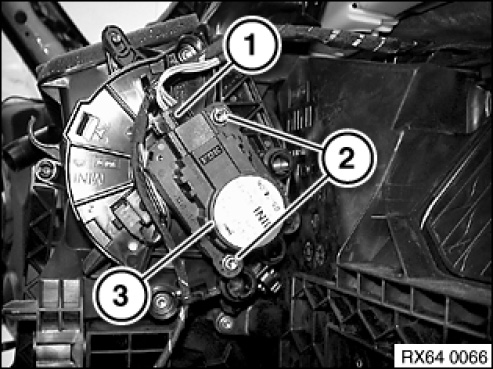

Disconnect plug connection (1).

Release screws (2) and remove servodrive (3).
