34 52 516 Removing and Installing/Replacing DSC Control Unit

34 52 516 Removing And Installing / Replacing DSC Control Unit







Necessary preliminary tasks:
- Remove hydraulic unit

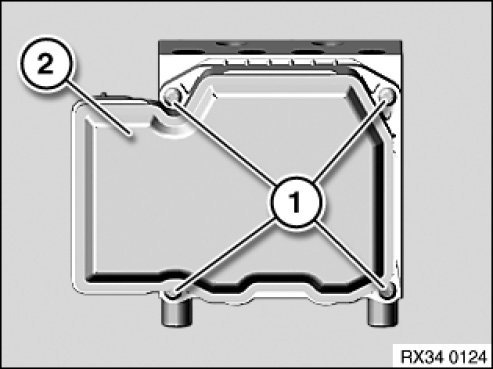

Release screws (1) and carefully remove control unit (2).

Necessary preliminary tasks:

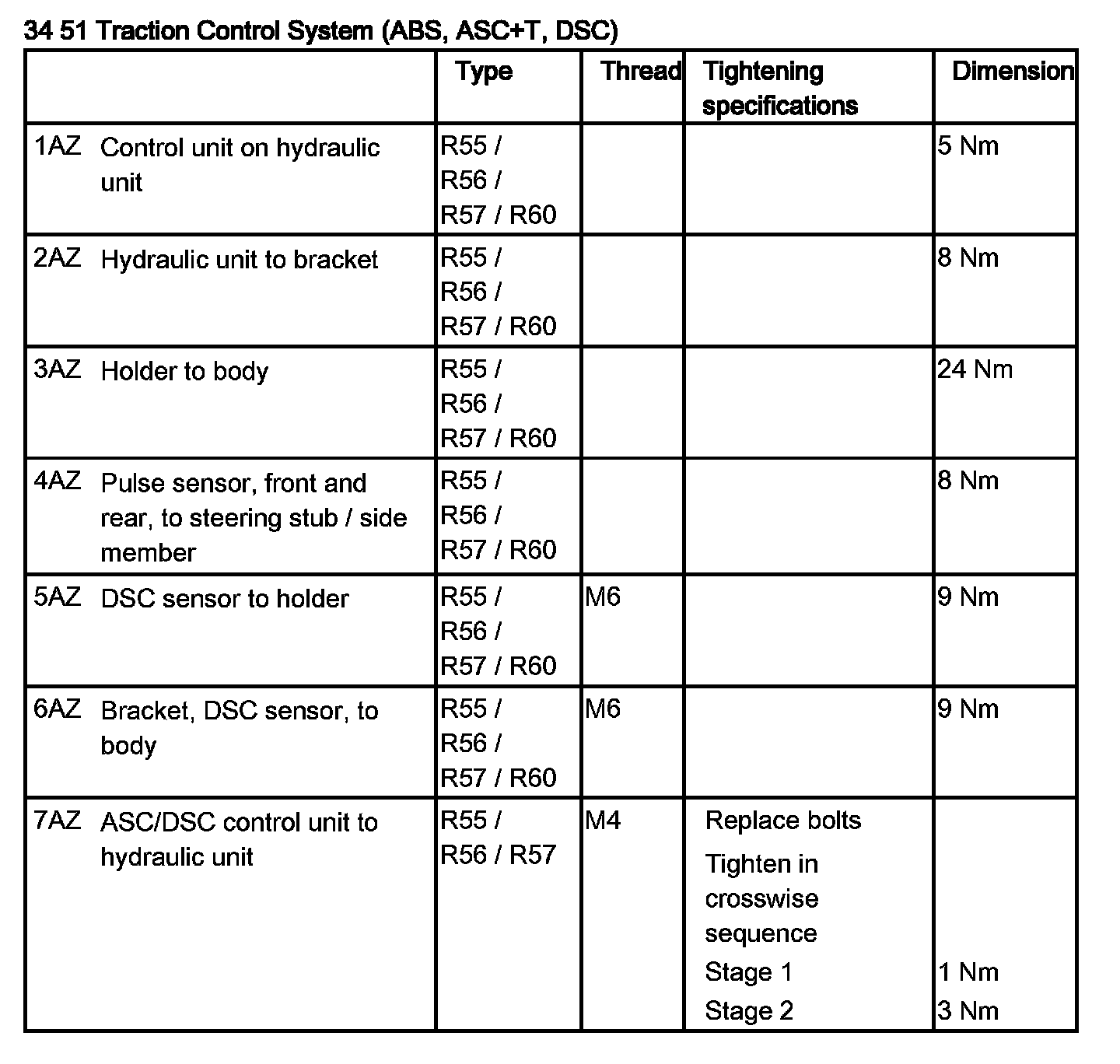

Tightening torque 34 51 1AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2
Observe following notes on installation.







IMPORTANT:
Do not use force to fit the control unit.
The two pins (2) must not be bent under any circumstances.

Installation:

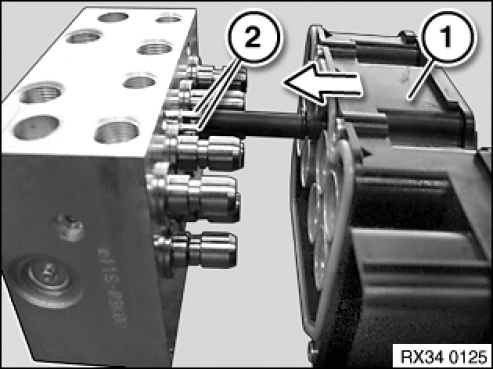

Carefully insert control unit (1) in direction of arrow, paying attention to the two pins (2).







Installation:

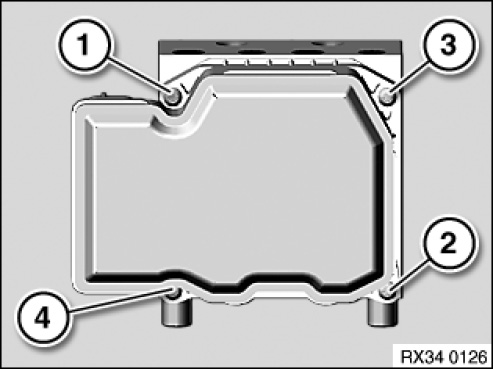

Observe tightening sequence (1-4).
Tightening torque 34 51 1AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2







Replacement:
- Carry out programming/coding
- Adjustment of steering angle sensor
