34 32 980 Replacing Rear Left or Right Brake Hoses

34 32 980 Replacing Rear Left Or Right Brake Hoses







Necessary preliminary tasks:
- Read and comply with General Information.
- Partially detach underbody panelling

After completing tasks, bleed brake system.

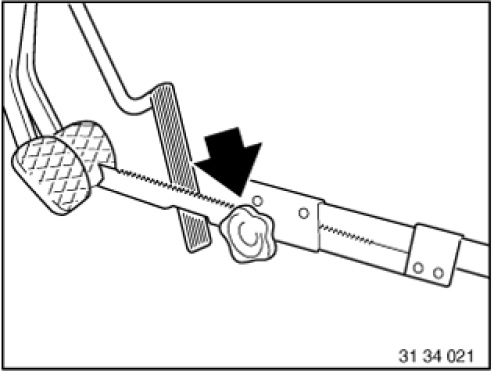

Press clutch pedal down to floor and secure with pedal support.

NOTE:
The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.







IMPORTANT:

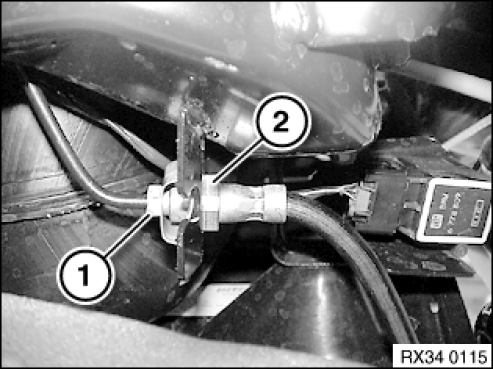

Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.

Disconnect brake hose from brake line (1).

Installation:
Tightening torque 34 32 1AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2

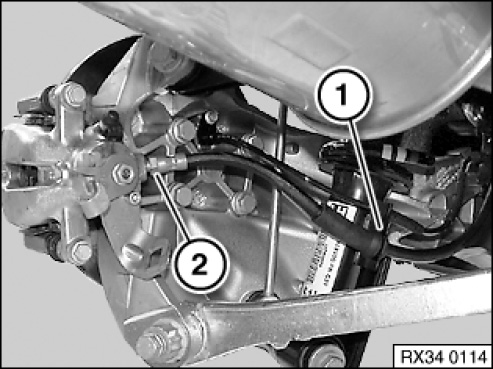

Disengage brake hose from holder (1).
Detach brake hose (2) from brake caliper.

Installation:
Tightening torque 34 32 3AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2







IMPORTANT:
Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

NOTE:
First tighten brake hose on brake caliper.
Insert brake hose in bracket and screw onto brake pipe.
