Radiator Support: Service and Repair

41 33 040 Replacing front wall

Read contents of Body, General. Service Precautions
For stripping and rigging operations, refer to texts on KSD CD (FR number 41 33 040).

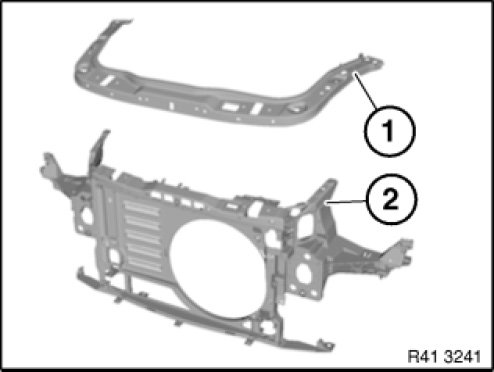

Following new body parts are required (refer to EPC Electronic Parts Catalogue):







- (1) Lock bridge
- (2) Front panel

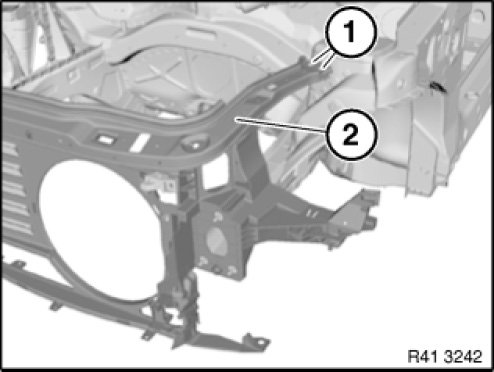

Release screws (1) on both sides of vehicle.
Tightening torque 51 11 7AZ. Specifications

Release screws (2) on both sides of vehicle.
Tightening torque 41 33 4AZ. 41 33 Modular Front End (MFE)
