65 13 040 Removing and Installing/Replacing Speaker (Bass Speaker In Front Door)



65 13 040 Removing and installing/replacing speaker (bass speaker in front door)







Necessary preliminary tasks:
- Remove front door trim panel

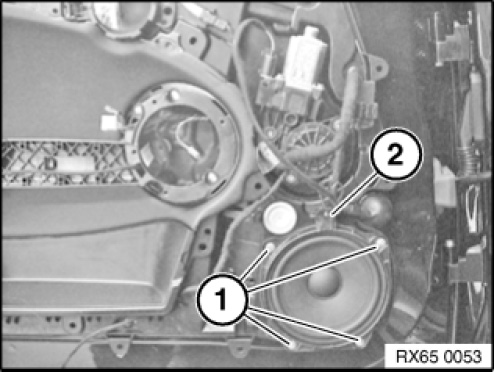

Release screws (1).
Disconnect plug connection (2) and remove speaker.
