61 62 022 Removing and Installing/Replacing Rear Window Wiper Blade (Left)




61 62 022 - Replacing wiper blade for rear window wiper on left





Important!
Make sure the wiper arm does not contact the rear window without its wiper blade.

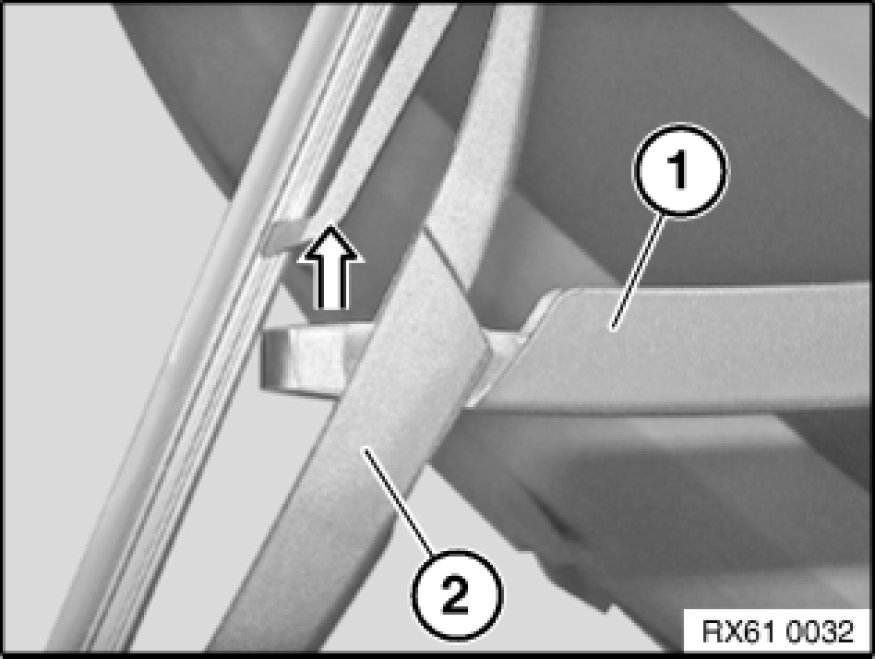

Lift back wiper arm for rear window wiper (1) and wiper blade for rear window wiper (2).
Unclip wiper blade for rear window wiper (2) in direction of arrow from wiper arm for rear window wiper (1) and remove.

Installation Note:
Make sure wiper blade for rear window wiper (2) is correctly engaged on wiper arm for rear window wiper (1).
