61 61 111 Replacing Left or Right Windscreen Wiper Rubber

61 61 111 - Replacing left or right windscreen wiper rubber





Necessary preliminary tasks:
- Remove windscreen wiper blade 61 61 041 Replacing Both Windscreen Wiper Blades

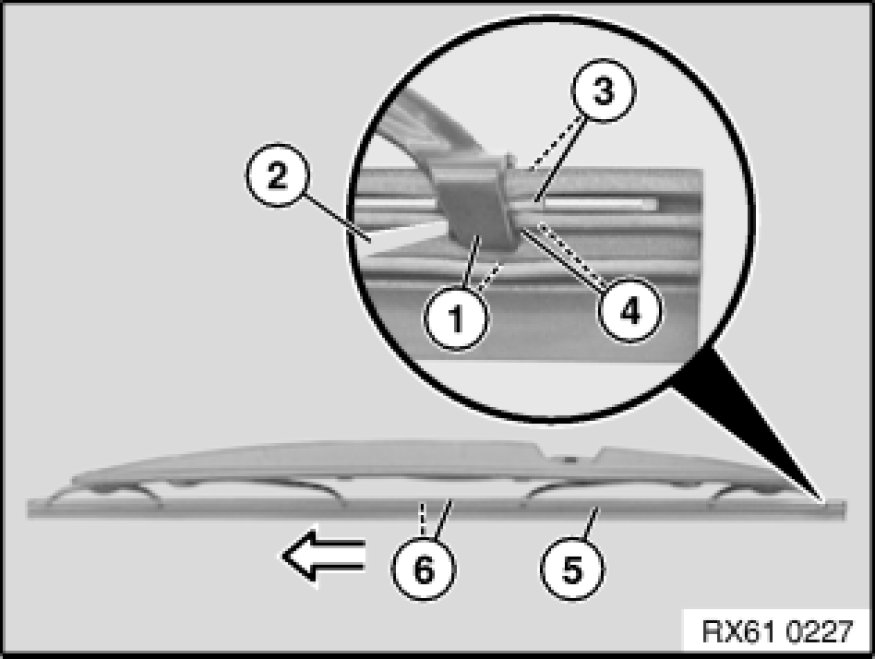

Spread wiper rubber (1) with a suitable tool (2).
Guide wiper rubber (5) with guide rails (6) in direction of arrow out of wiper blade.

Installation:
Make sure wiper rubber (5) and guide rails (6) are correctly seated on wiper blade.
Wiper rubber guide (1) must be seated in grooves of guide rails (3) and in recesses of wiper rubber (4).
Wiper rubber guide (1) must prevent the wiper rubber (5) and guide rails (6) from slipping out of the wiper blade.
