61 62 032 Removing and Installing/Replacing Wiper Arm on Rear Window (Left)

61 62 032 - Replacing wiper arm for rear window wiper on left





Special tools required:
- 61 6 210

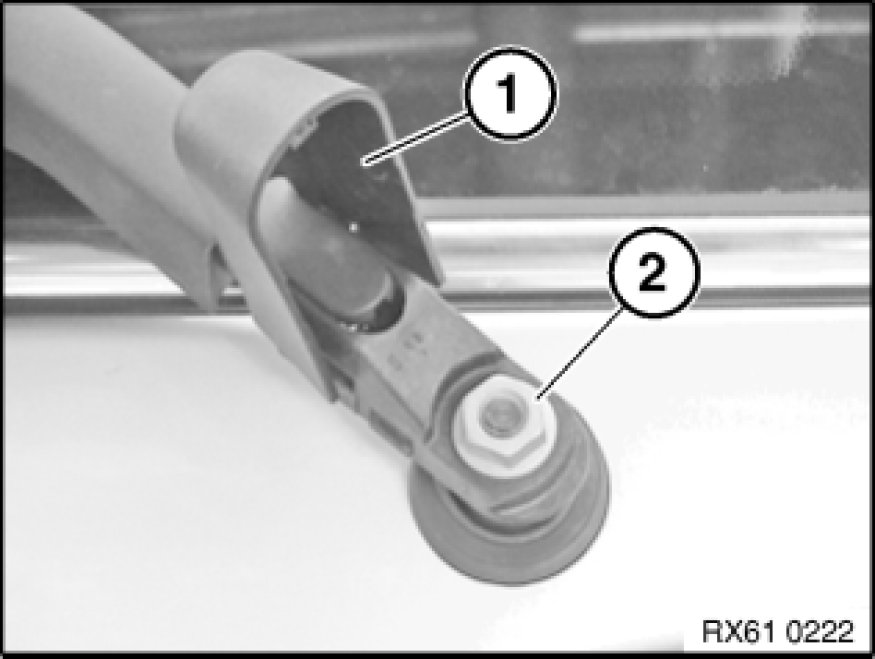

Open protective cap (1).

Slacken nut (2). Tightening torque 61 62 1AZ 61 62 Rear Wiper.





Important!

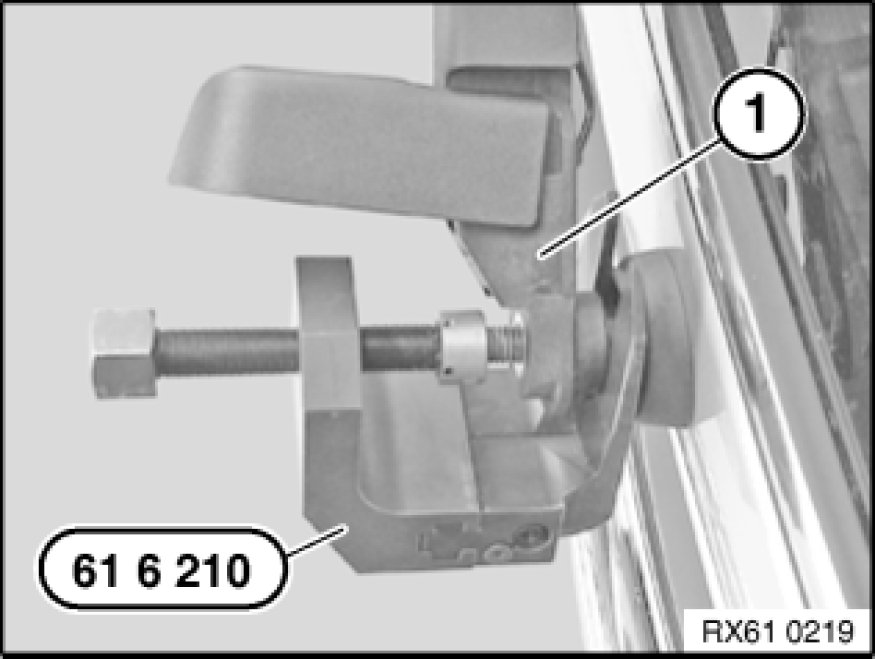

Secure special tool 61 6 210 and wiper arm for rear window (1) against falling off during pressing-off procedure.

Press off wiper arm for rear window (1) with special tool 61 6 210.

Remove wiper blade for rear window wiper 61 62 022 Removing and Installing/Replacing Rear Window Wiper Blade (Left).





Installation:
Window wiper must be in rest position.

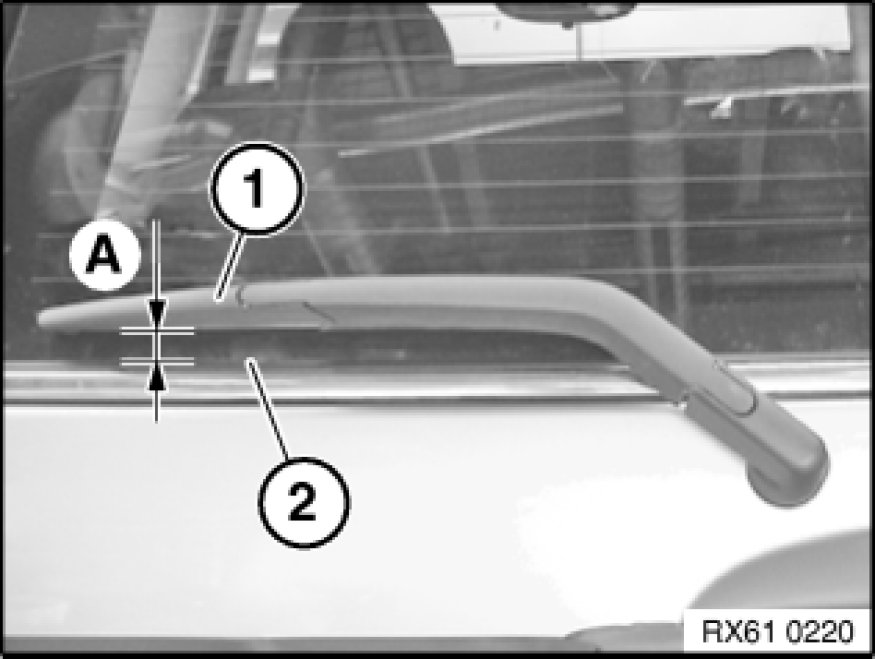

Adjust distance (A = 18 mm) between wiper arm for rear window (1) and lower rear window cover (2).
