Removing and Installing/Replacing Outside Temperature Sensor (with A/C)




65 81 061 - Removing and installing/replacing outside-temperature sensor (with A/C system)





Necessary preliminary tasks:
- Remove bumper trim 51 11 156 Removing and Installing Front Bumper Trim

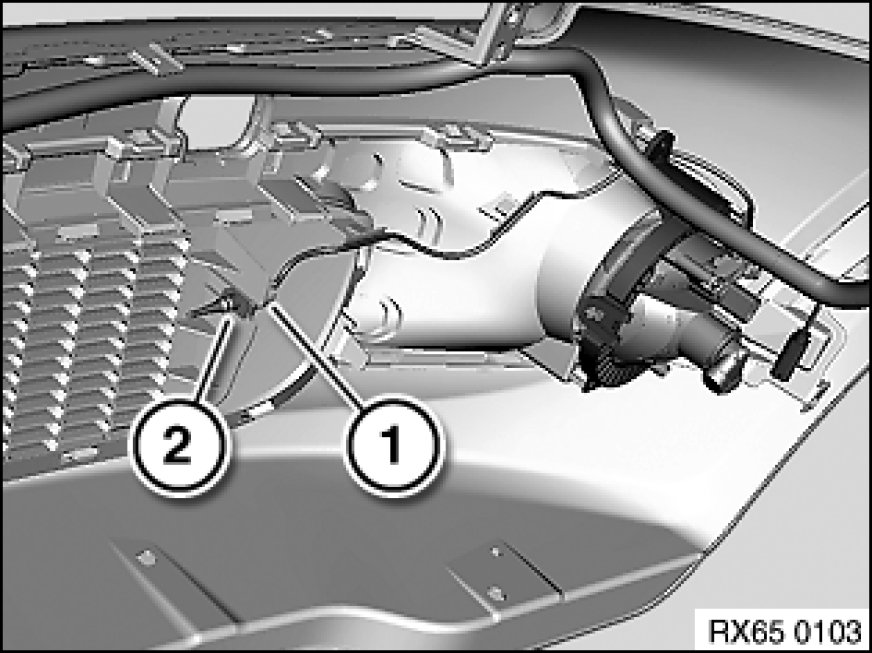

Disconnect plug connection (1) and unclip outside-temperature sensor (2).

Installation:
Ensure correct cable routing.
