Removing and Installing/Replacing Footwell Light (Splitdoor)

63 31 020 - Removing and installing/replacing footwell light (splitdoor)





Special tools required:
- 64 1 020





Important!
Follow instructions for handling light bulbs (interior lights) Instructions for Replacing Light Bulbs (Interior Lights).

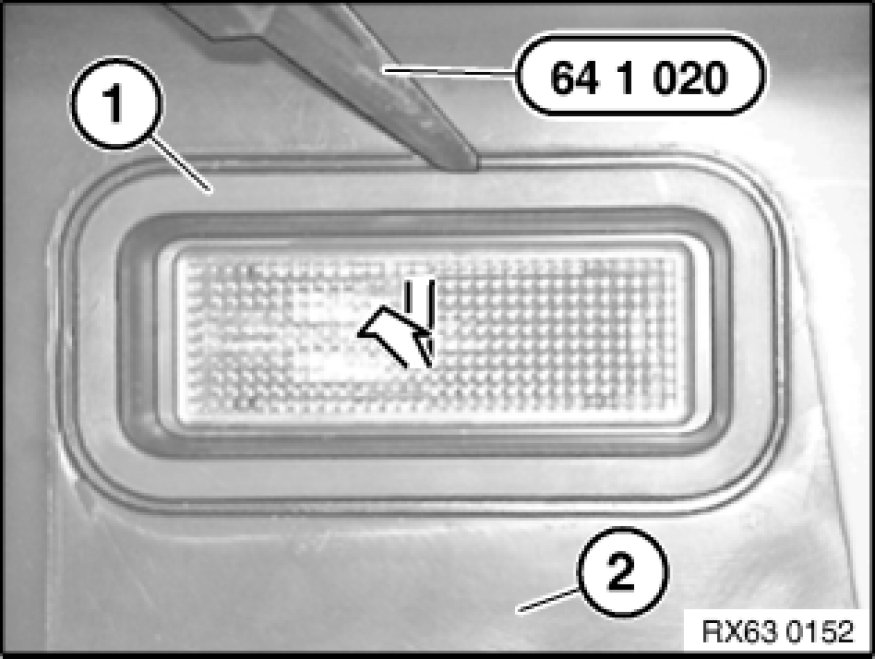

Lever footwell light frame (1) with special tool 64 1 020 in direction of arrow out of door trim panel (2).

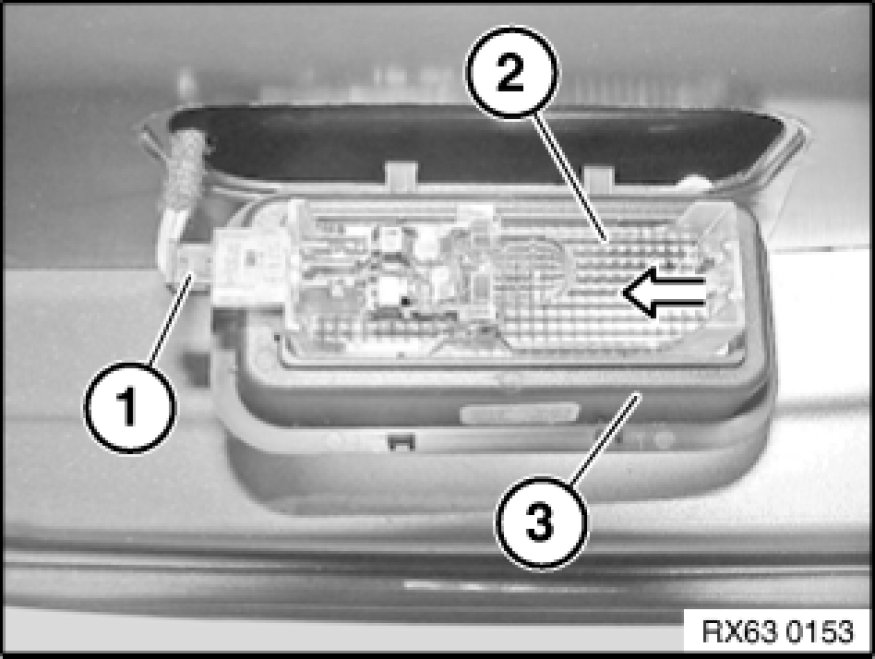

Disconnect plug connection (1).

Unclip footwell light (2) in direction of arrow from footwell light frame (3) and remove towards rear.

Replacement:

If necessary, remove bulb Replacing Light Bulb for Footwell Light (Splitdoor).
