Removing and Installing/Replacing Footwell Light (Clubdoor)

63 31 020 - Removing and installing/replacing footwell light (clubdoor)





Special tools required:
- 00 9 323





Important!
Follow instructions for handling light bulbs (interior lights) Instructions for Replacing Light Bulbs (Interior Lights).





Lever footwell light (1) with special tool 00 9 323 in direction of arrow out of door trim panel (2).

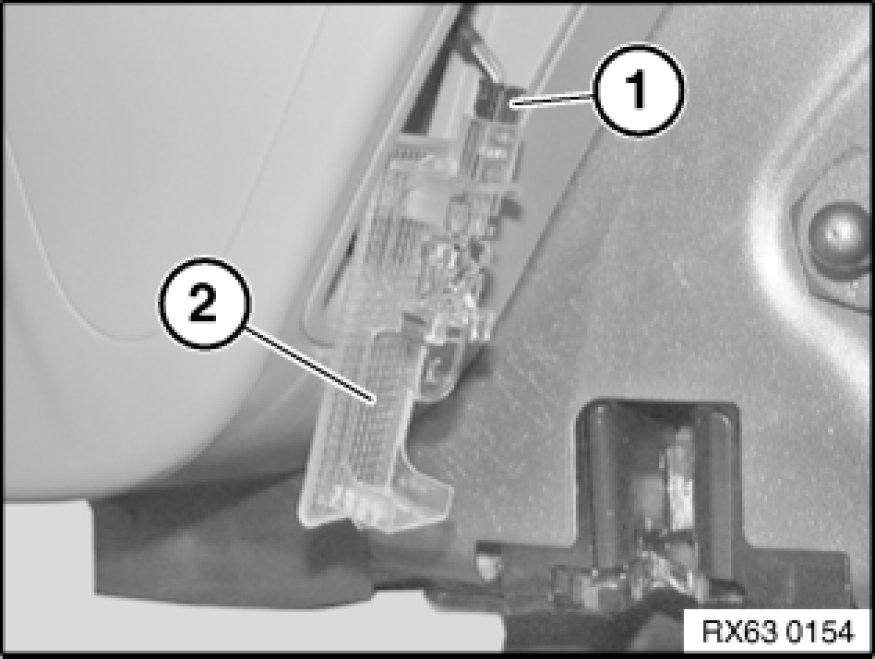

Disconnect plug connection (1) and remove footwell light (2).

Replacement:

If necessary, remove bulb Replacing Bulb for Footwell Light (Clubdoor).
