51 45 ... Removing and Installing/Replacing Side Cover From Cover For Air Outlet Vent

51 45 ... - Removing and installing/replacing side cover from cover for air outlet vent





Special tools required:

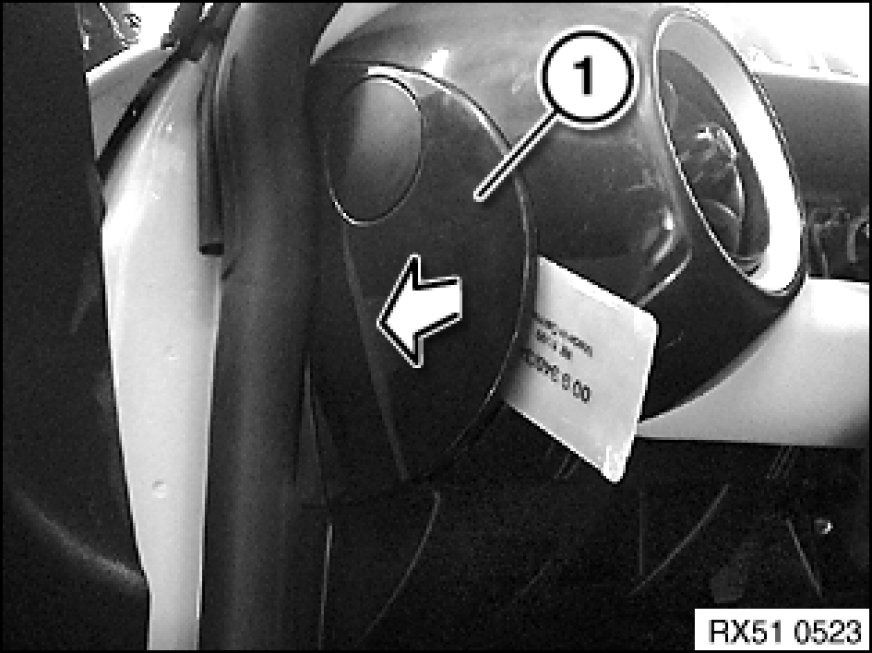

Unclip cover (1) with special tool 00 9 340 in direction of arrow.

If necessary, disconnect associated plug connection.

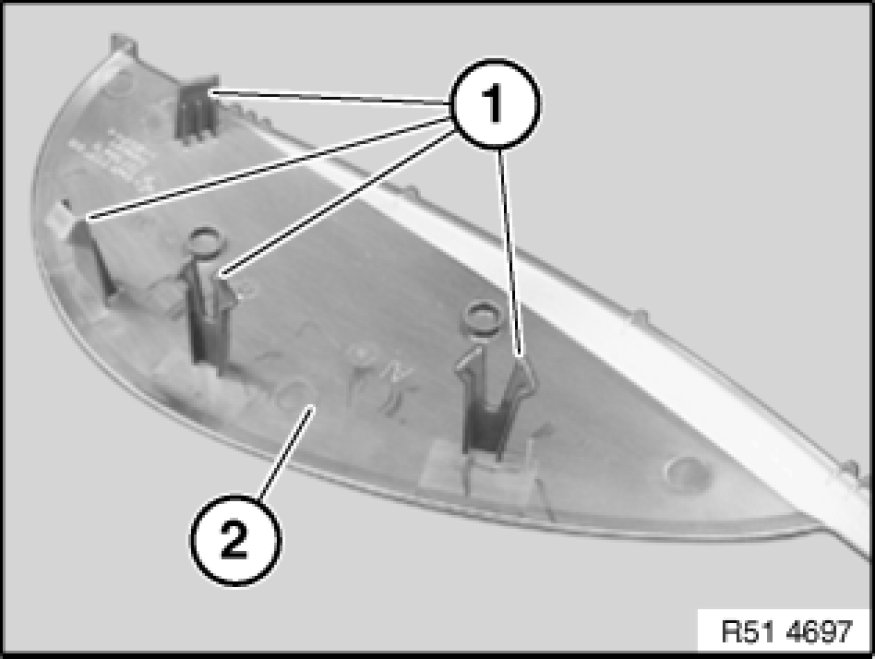

Catches (1) of cover (2) must not be damaged.

Replacement:

If necessary, remove switch for passenger airbag deactivation 61 31 068 Removing and Installing/Replacing Switch for Passenger Airbag Deactivation.
