51 47 490 Removing and Installing/Replacing Front Assembly Underbody Protection (Diesel)

51 47 490 Removing and installing/replacing front assembly underbody protection (diesel)





Note:

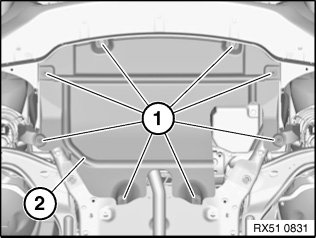

Picture created using the R56 COOPER D as the example. There may be differences in detail in the case of other models.





Release screws (1).

Pull forward underbody protection (2) under bumper trim and remove.

Installation note:
Centre underbody protection and tighten down screws.
