54 13 090 Removing and Installing/Replacing Wind Deflector

54 13 090 - Removing and installing/replacing wind deflector





Necessary preliminary tasks:
- Open glass slide/tilt sunroof

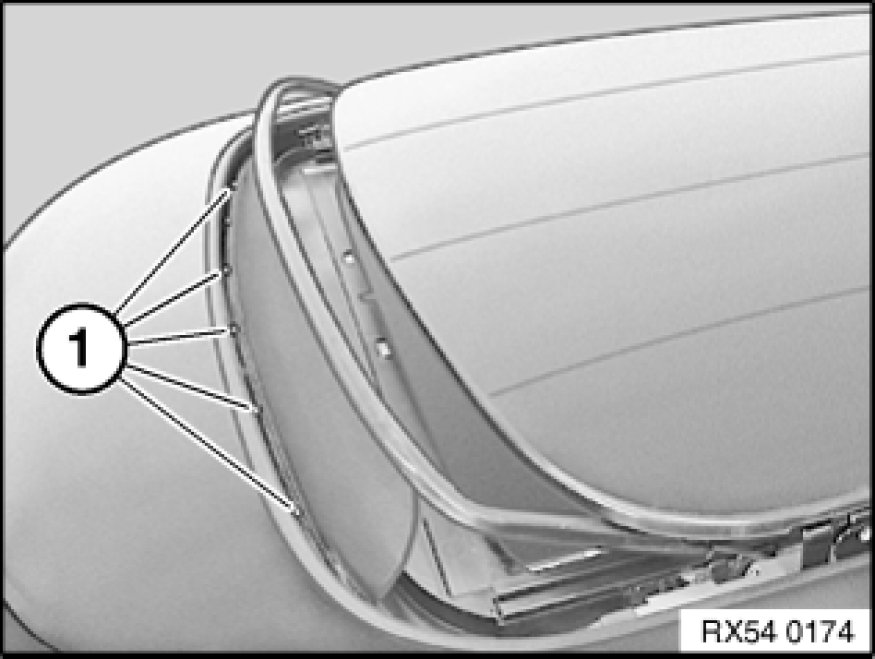

Release screws (1).





Note:
The right side is removed in the same way as the left side.

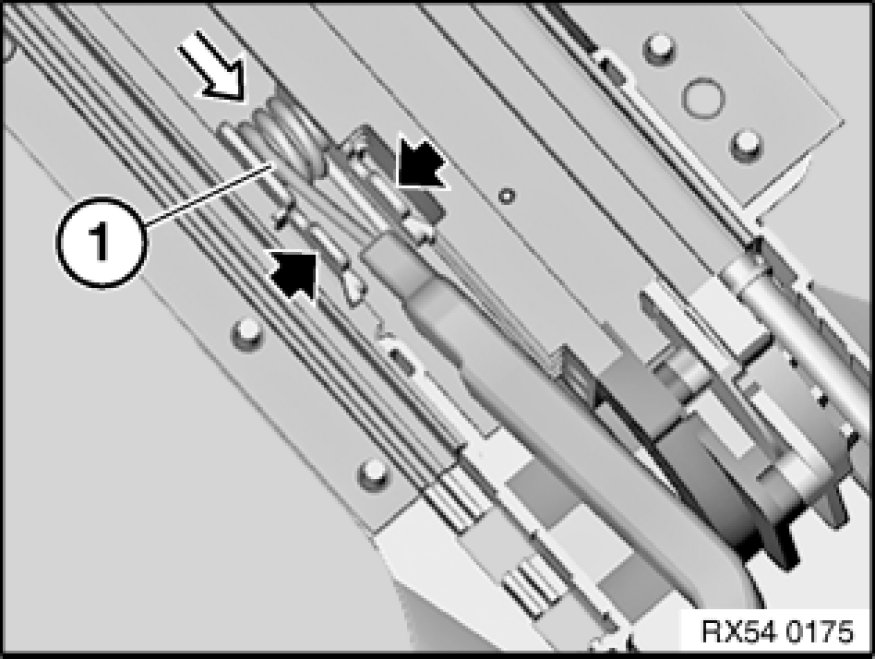

Press retaining lugs and slide spring joint (1) forwards up to opening in rail profile.

Remove spring joint towards top from rail profile.

Installation:
Make sure rail profile is at correct installed height.





Installation:
Initialize panorama sunroof.
