41 33 040 Replacing Front Wall

41 33 040 Replacing front wall







Read contents of Body, General.

For stripping and rigging operations, refer to texts on KSD CD (FR number 41 33 040).

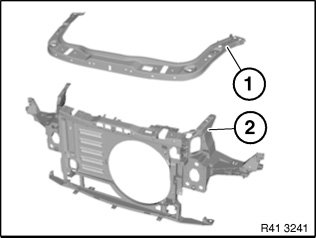

Following new body parts are required (refer to EPC Electronic Parts Catalogue):

- (1) Lock bridge
- (2) Front panel

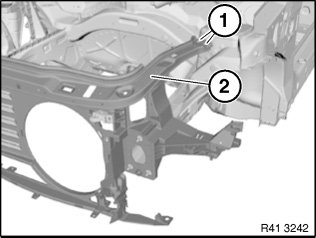

Release screws (1) on both sides of vehicle.

Tightening torque 51 11 7AZ.

Release screws (2) on both sides of vehicle.

Tightening torque 41 33 4AZ.
